6

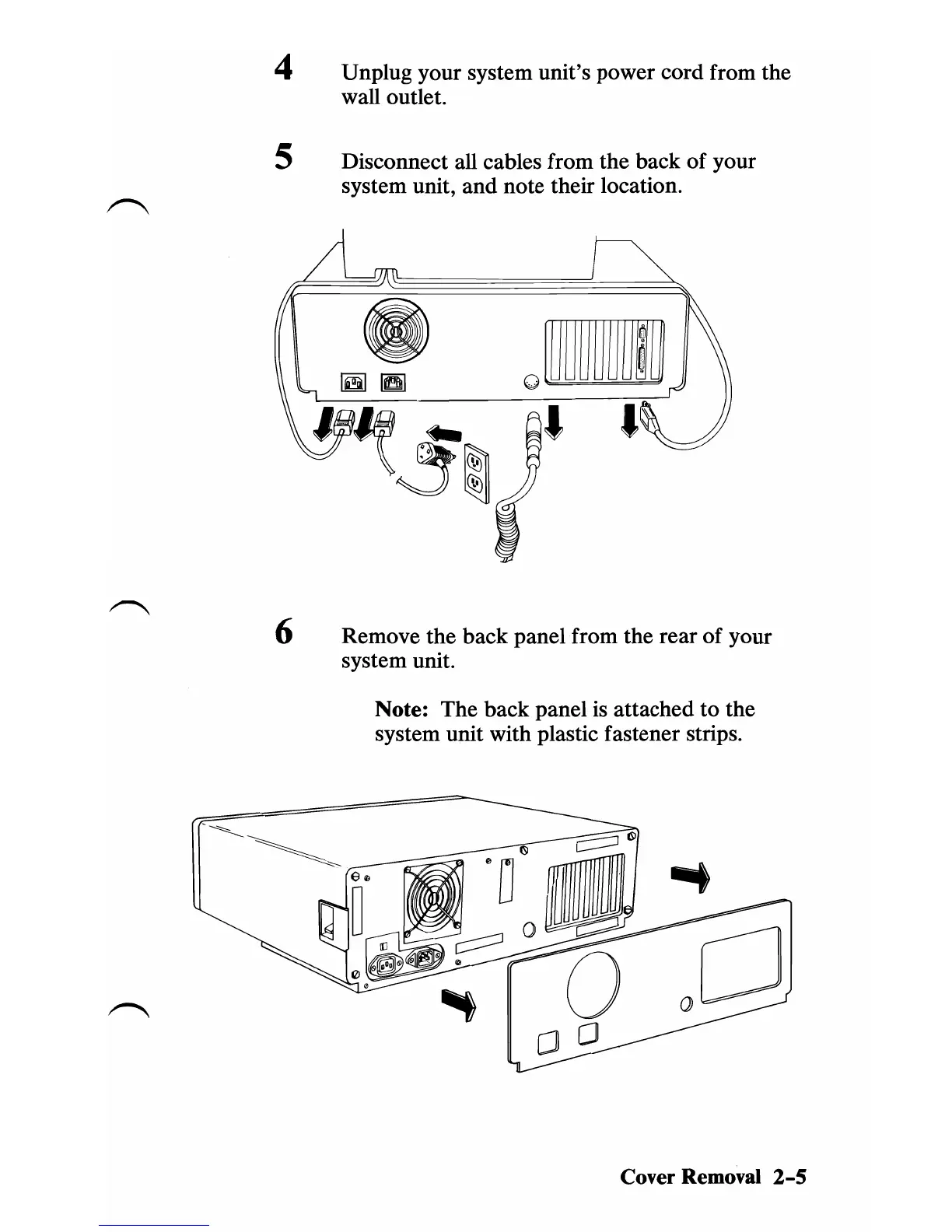

4 Unplug your system unit's power cord from the
wall outlet.
5 Disconnect all cables from the back of your
system unit, and note their location .
110
. ~
~J
i
~
j
Remove the back panel from the rear of your
system unit.
Note: The back panel is attached to the
system unit with plastic fastener strips.
Cover Removal 2-5
