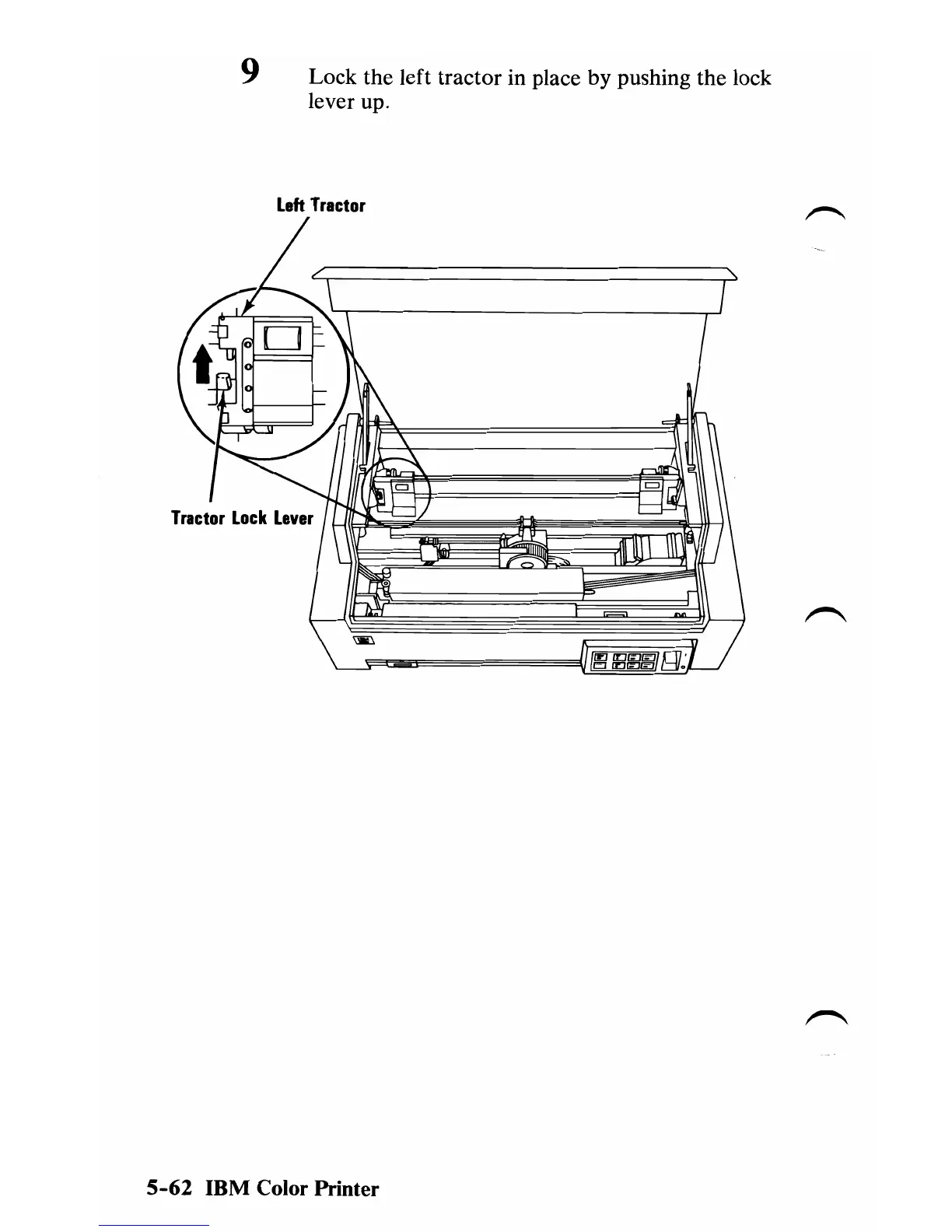

9 Lock the left tractor in place

pushing the lock

lever up.

Lett

Tractor

5-62

IBM Color Printer
