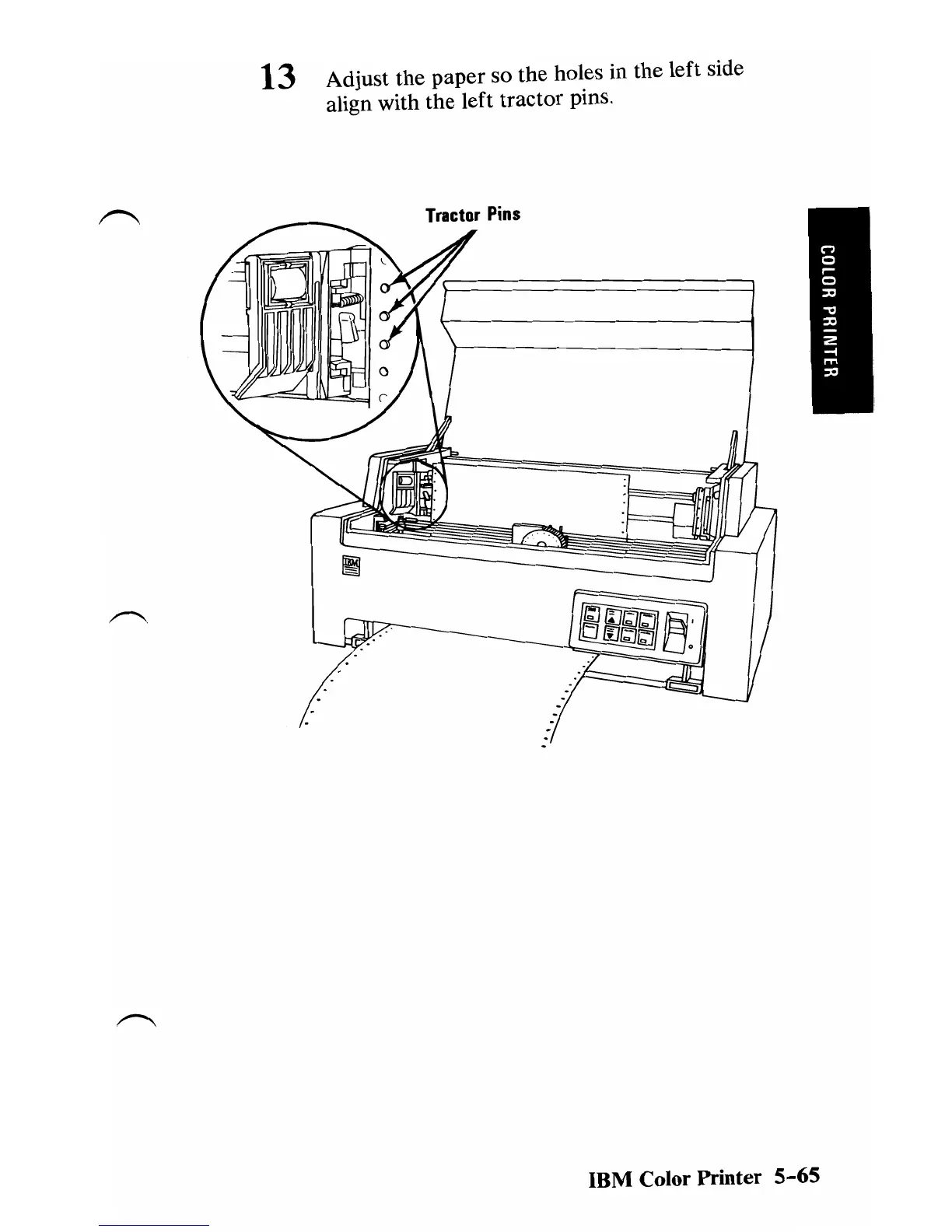

Adjust the

~a~er

so the holes in the left side

align with the left tractor pins.

IBM Color Printer

5-65
