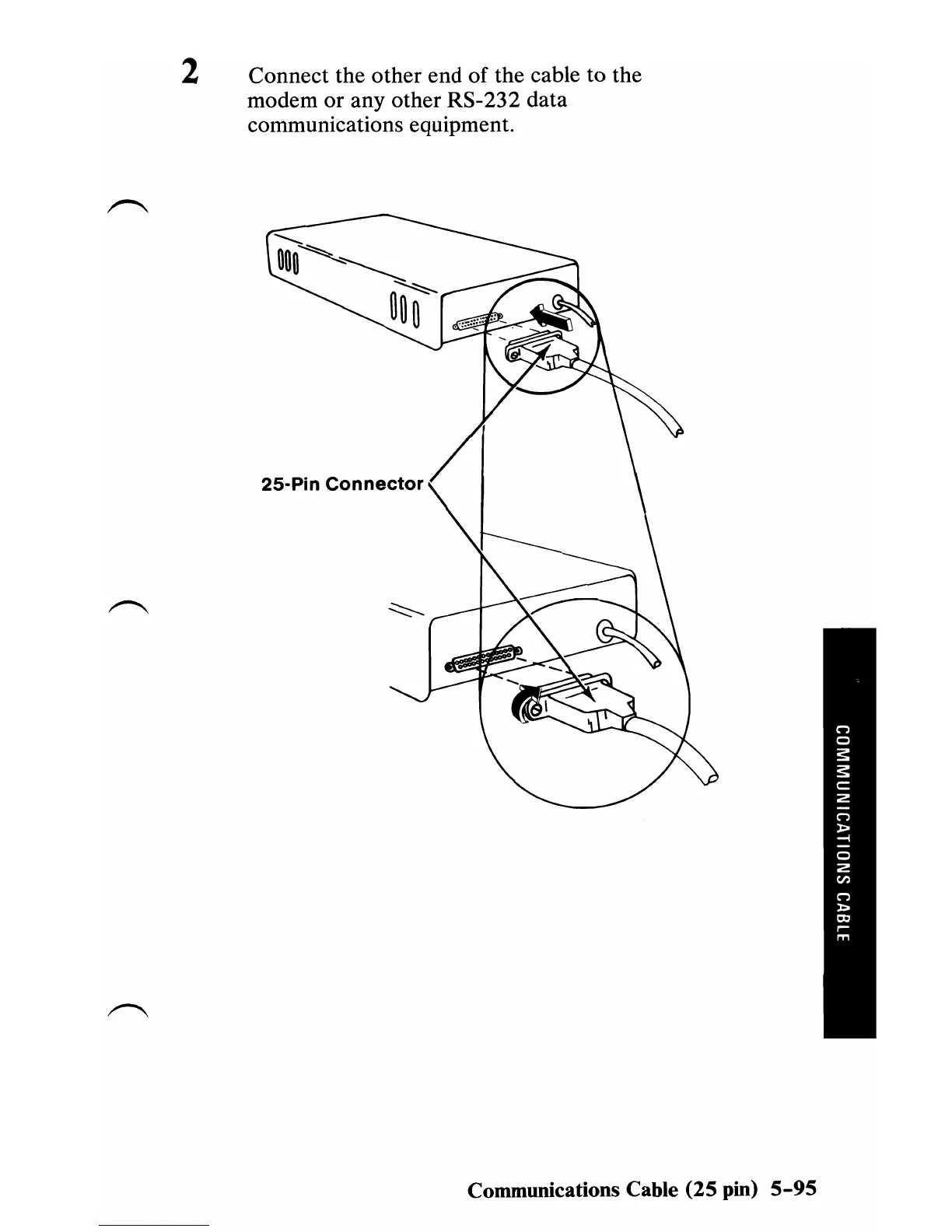

2 Connect the other end of the cable to the

modem or any other RS-232 data

communications equipment.

25·Pin Connector

Communications Cable (25

pin)

5-95
