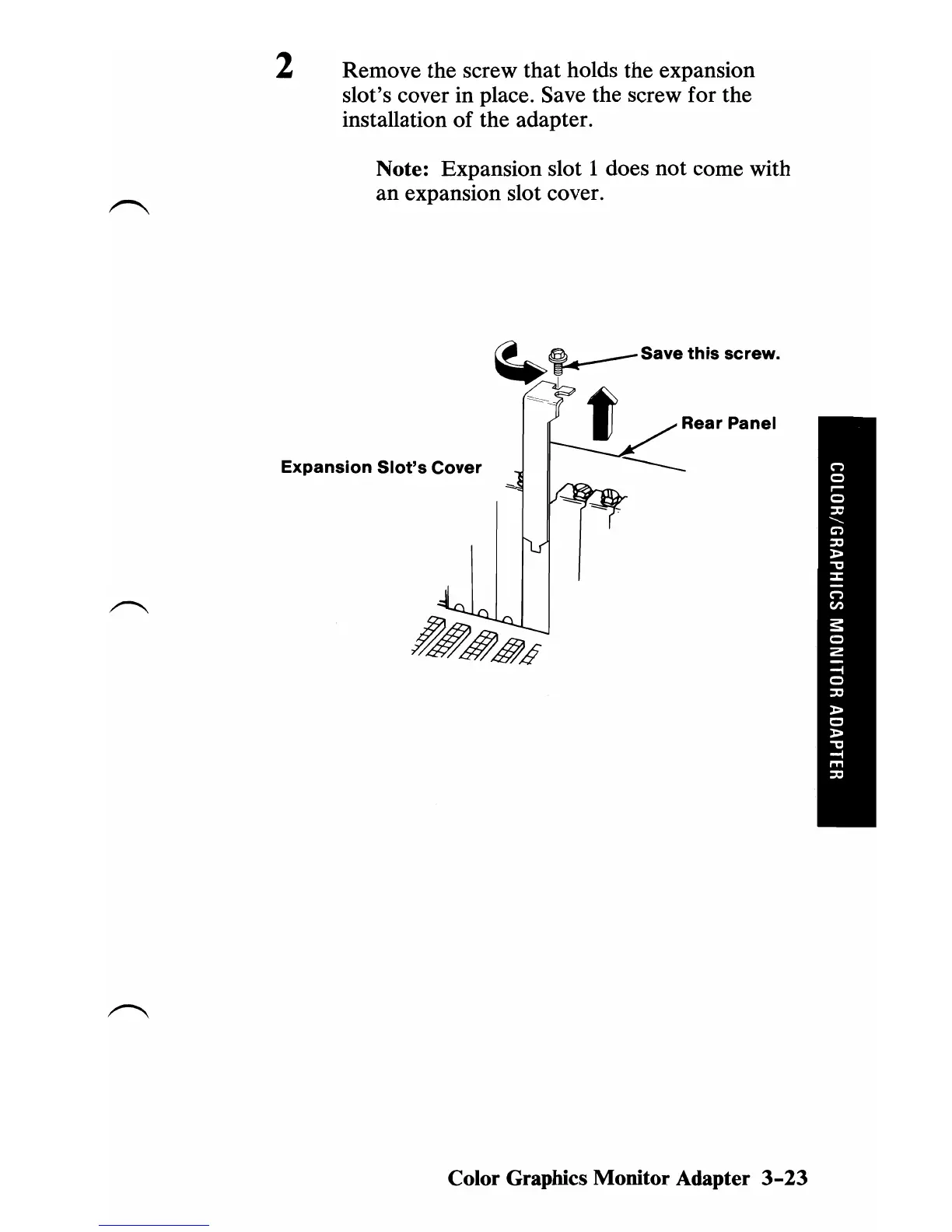

2 Remove the screw that holds the expansion
slot's cover in place. Save the screw for the
installation of the adapter.
Note: Expansion slot 1 does not come with
an expansion slot cover.
Rear
Panel
Expansion
Slot's
Cover
Color Graphics Monitor Adapter
3-23
