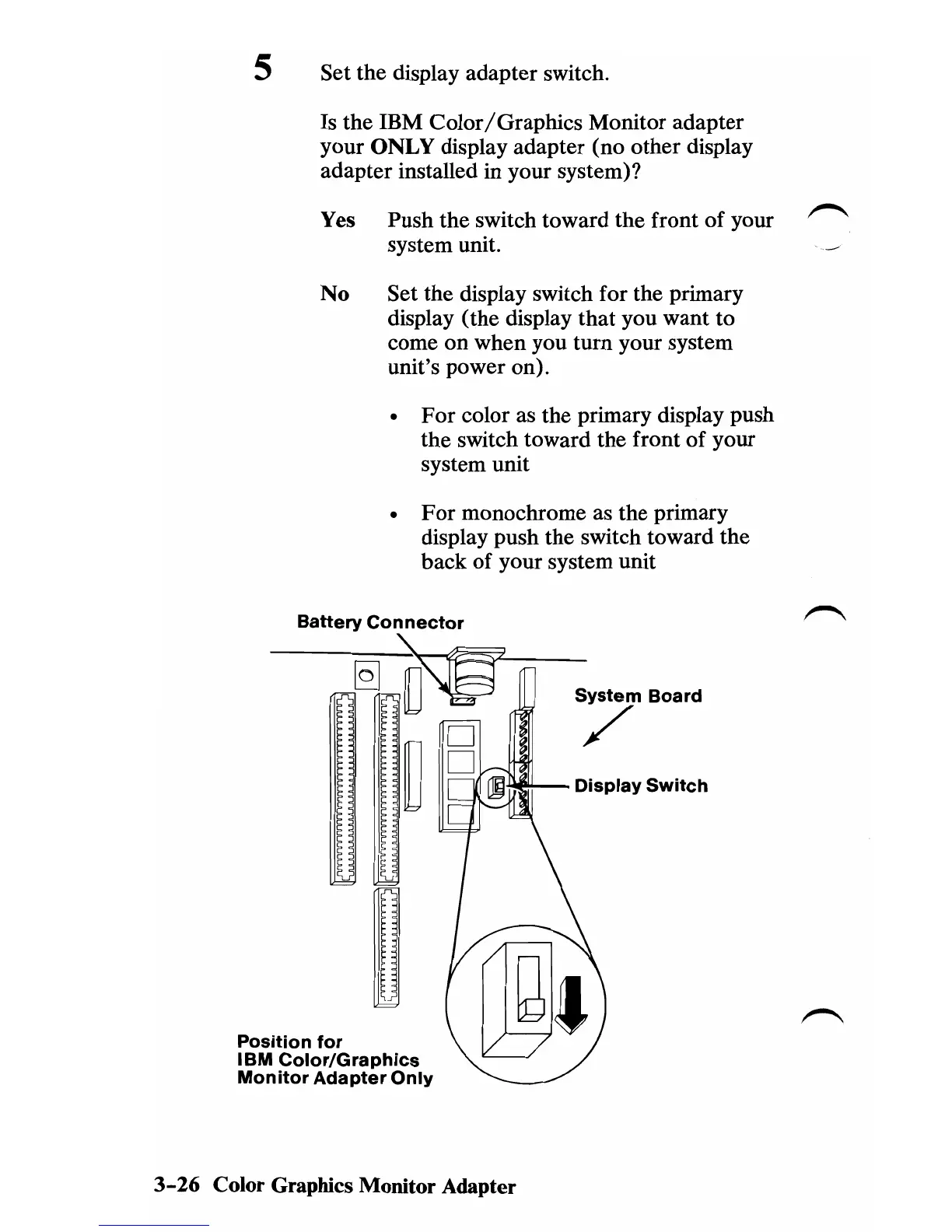

5 Set the display adapter switch.
Is the IBM Color/Graphics Monitor adapter
your ONLY display adapter (no other display
adapter installed in your system)?
Yes Push the switch toward the front
of your
system unit.
No Set the display switch for the primary
display (the display that you want to
come
on when you turn your system
unit's power on).
•
For color as the primary display push
the switch toward the front
of your
system unit
•
For monochrome as the primary
display push the switch toward the
back
of your system unit
Battery Connector
D ! /
~ [1 D ~
" E ~ ~ [J+!e:---- Display Switch
I!
~
H
U
Position for
IBM Color/Graphics
Monitor Adapter Only
3-26 Color Graphics Monitor Adapter
