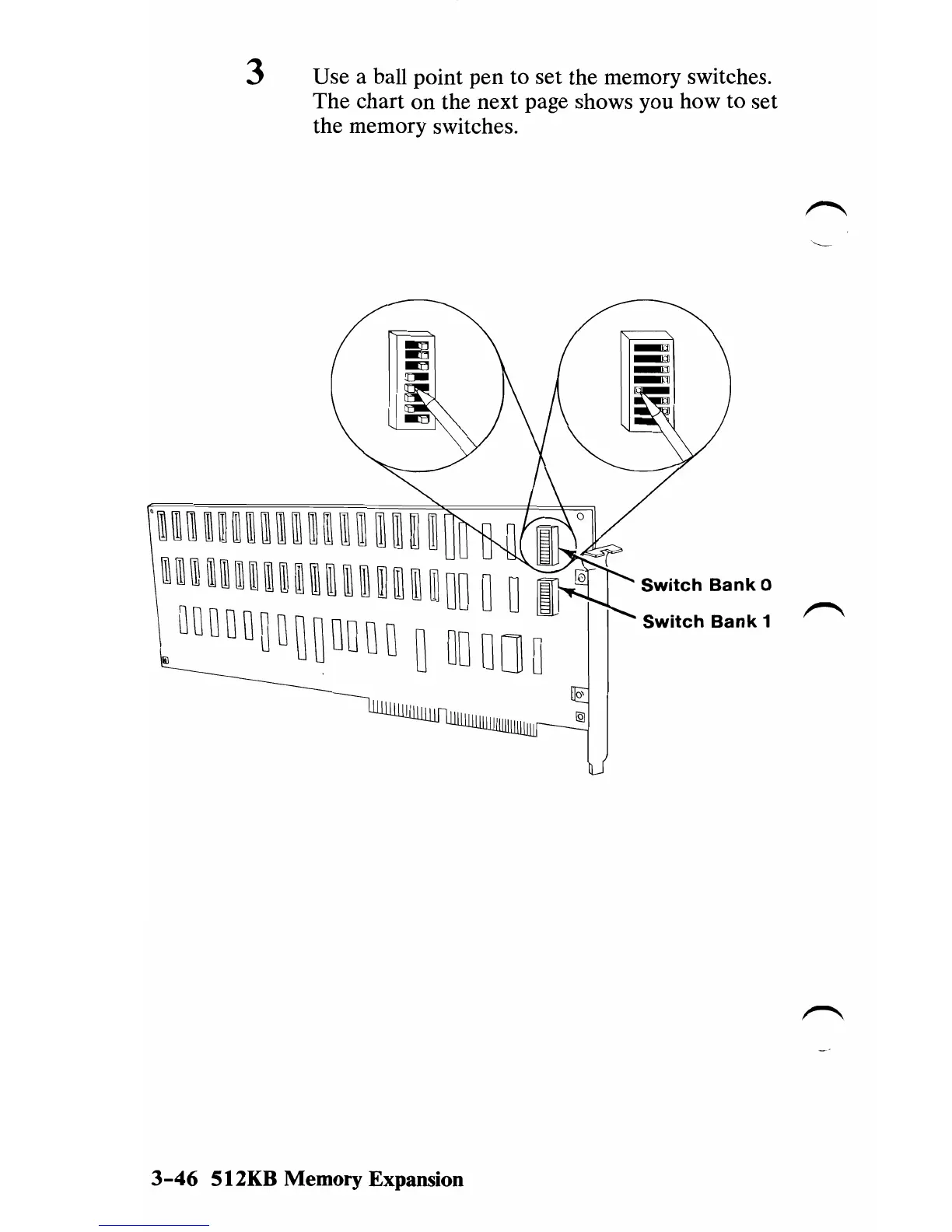

3 Use a ball point

pen

to set the memory switches.

The chart

the next page shows you how to set

the memory switches.

3-46

512KB Memory Expansion
