2
3

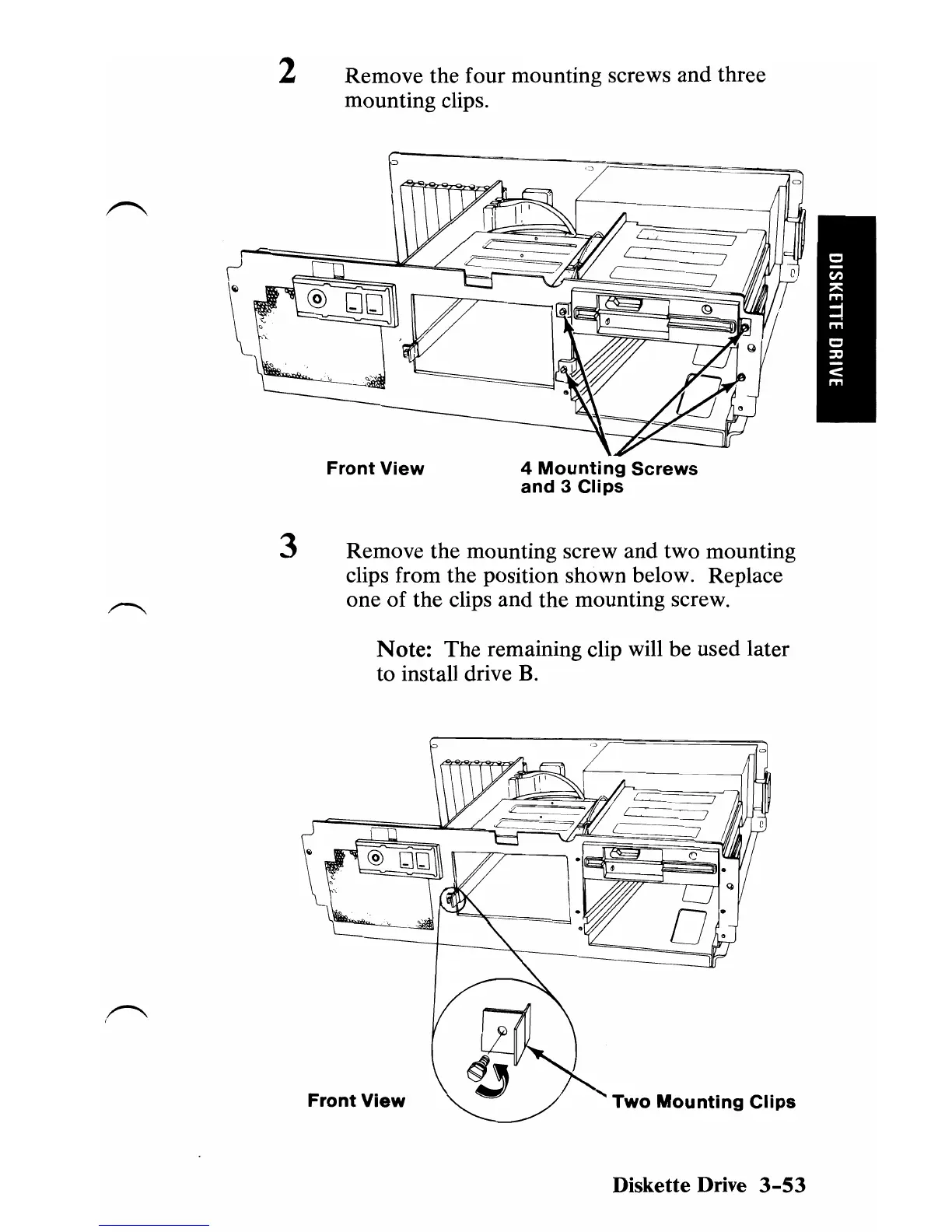

Remove the four mounting screws and three
mounting clips.
Front View 4 Mounting Screws
and 3 Clips
Remove the mounting screw and two mounting
clips from the position shown below. Replace
one
of the clips and the mounting screw.
Note: The remaining clip will be used later
to install drive
B.
Front View
...... Two Mounting Clips
Diskette Drive 3-53
