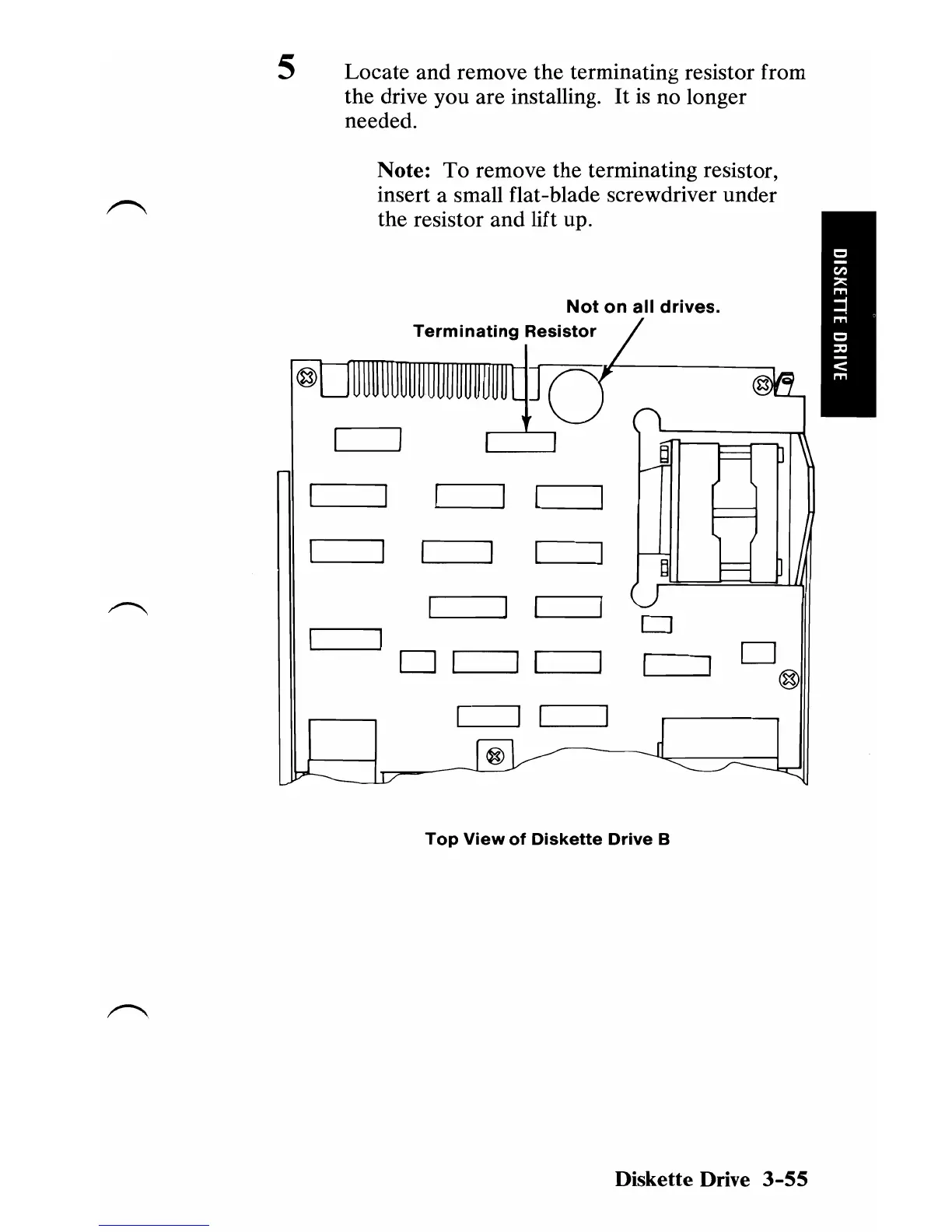

5 Locate and remove the terminating resistor from
the drive you are installing.
It is no longer
needed.
Note: To remove the terminating resistor,
insert a small flat-blade screwdriver under
the resistor and
lift up.
Not on all drives.
Terminating Resistor
D
D
D
I
@
Top View of Diskette Drive B
Diskette Drive 3-55
