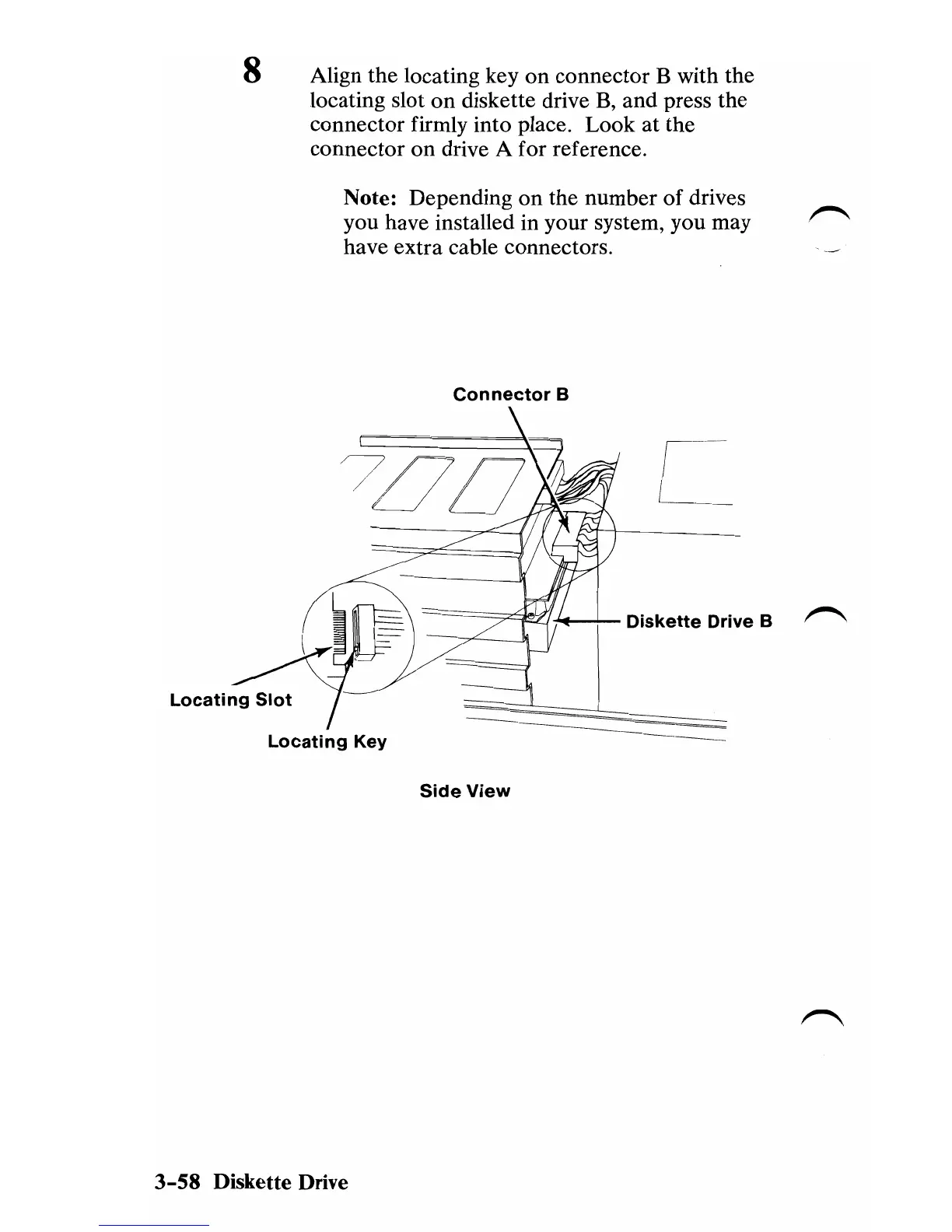

8 Align
the
locating key
on
connector B with the
locating slot
on
diskette drive B,
and
press the
connector firmly into place. Look
at
the
connector
on
drive A for reference.
Note: Depending
on
the
number
of
drives
you have installed in your system, you may
have extra cable connectors.
Connector
B
===7~fjJ.~-L-
Diskette Drive B
Locating Key
Side
View
3-58
Diskette Drive
