IBM 5170 - Page 85

286 pages

To Next Page

To Previous Page

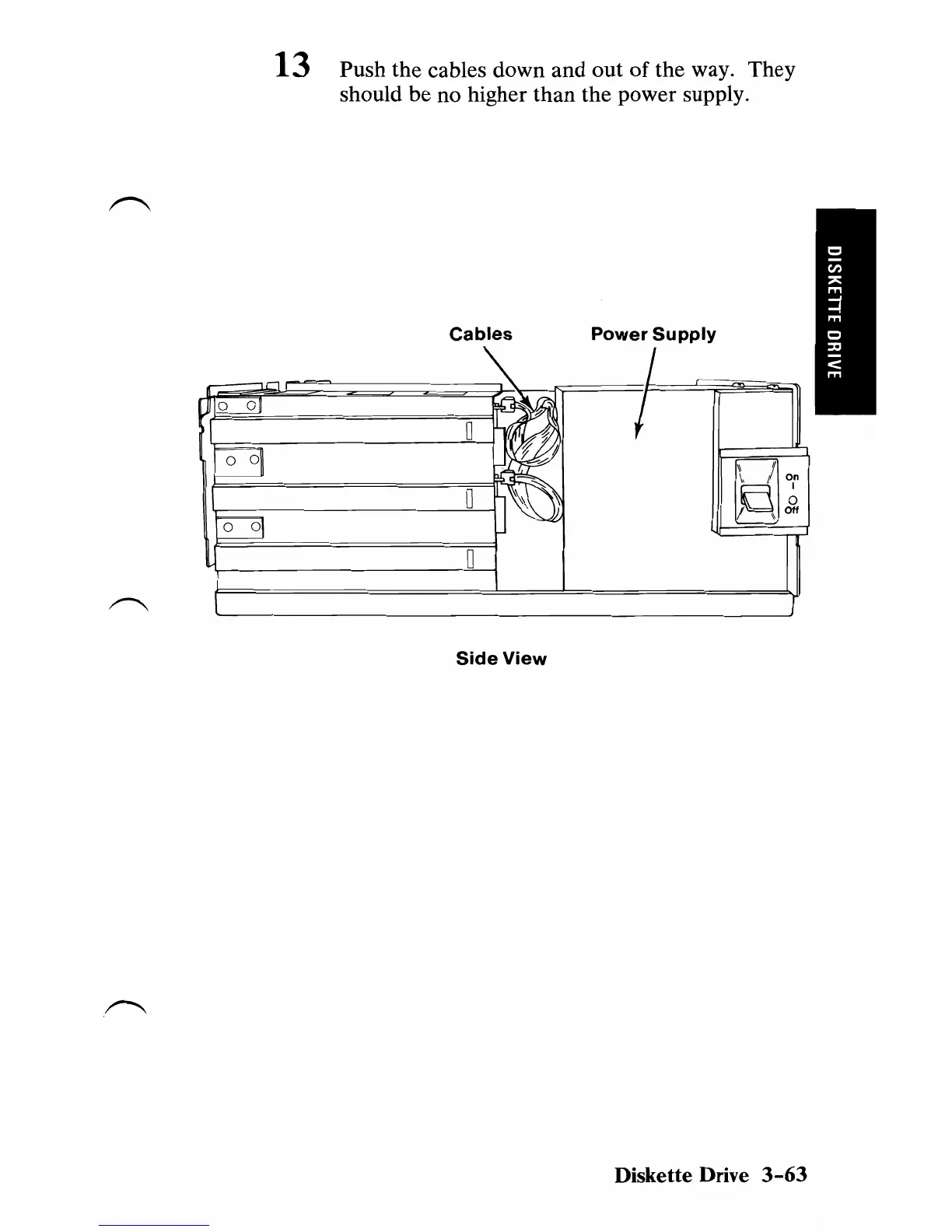

13 Push the cables down and out

the way. They

should be no higher than the power supply.

Cables Power Supply

Side

View

Diskette Drive

3-63
