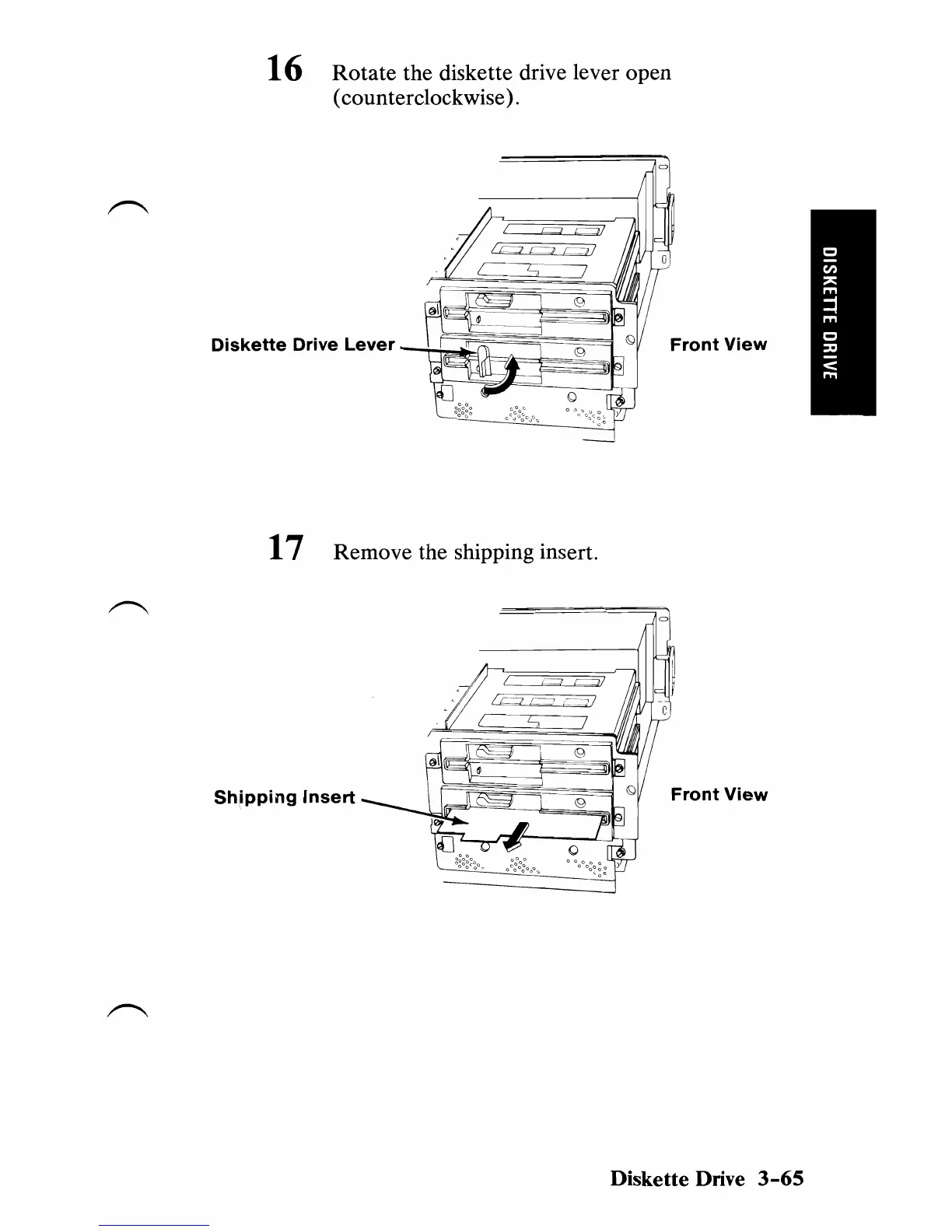

16 Rotate the diskette drive lever

open

(counterclockwise) .

Front

View

1 7 Remove the shipping insert.

?,~

Front

View

Diskette Drive

3-65
