4. Open the hinge bracket on each end of the rail.
5. Identify the side of the rack where the rail must be mounted by holding the rail inside of the open
space of the rack as follows:
v The rail points from front to rear.
v The support ledge (A) is at the bottom and points toward the center of the open space.
v The enclosure stop (B) points toward the rear of the rack.
6. Locate the two marks that were made previously on the Electronic Industries Alliances (EIA) strips.

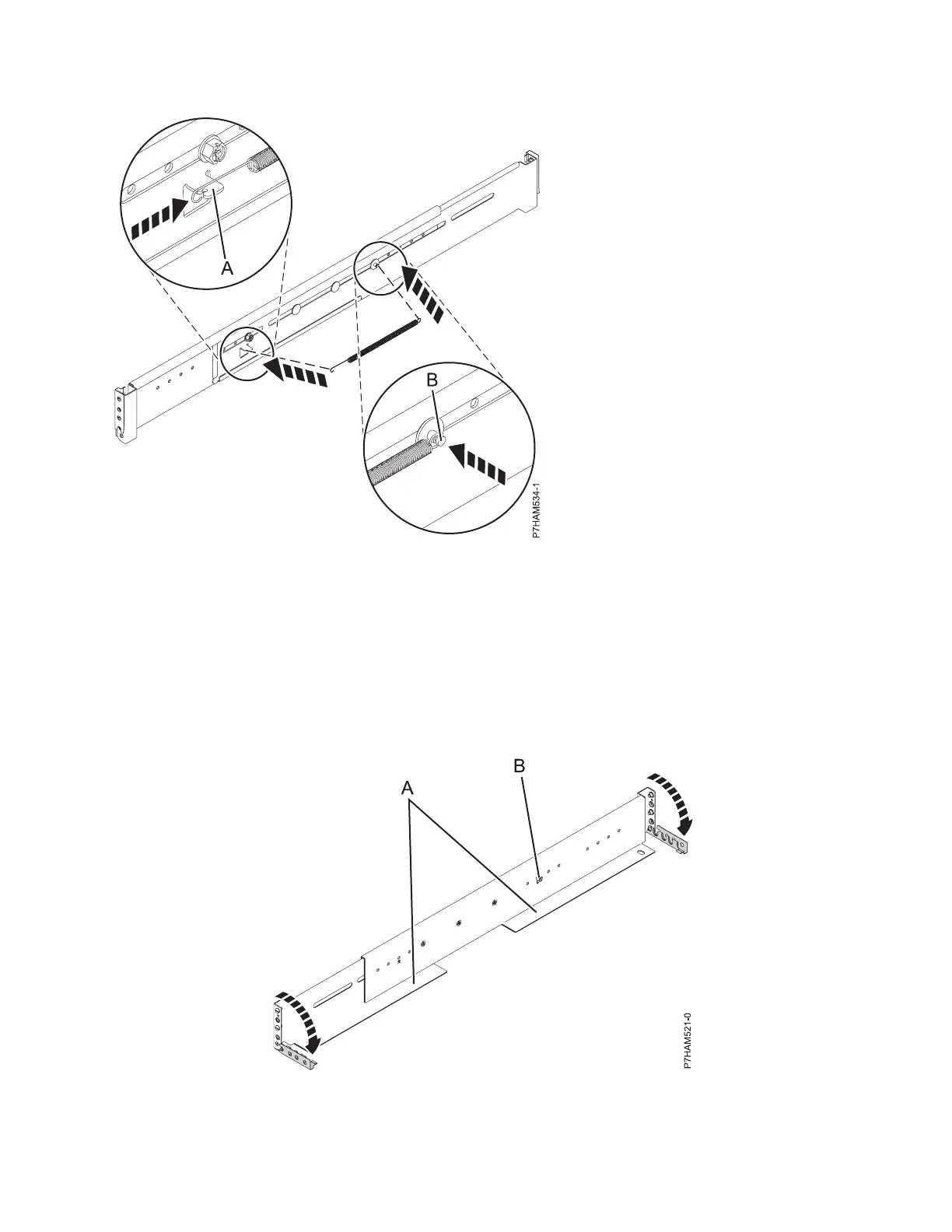

Figure 3. Installing the spring to the rail
Figure 4. Opening the rail hinge bracket
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 5
