Model 9117-MMB or 9179-MHB connector locations
Learn about connector locations.

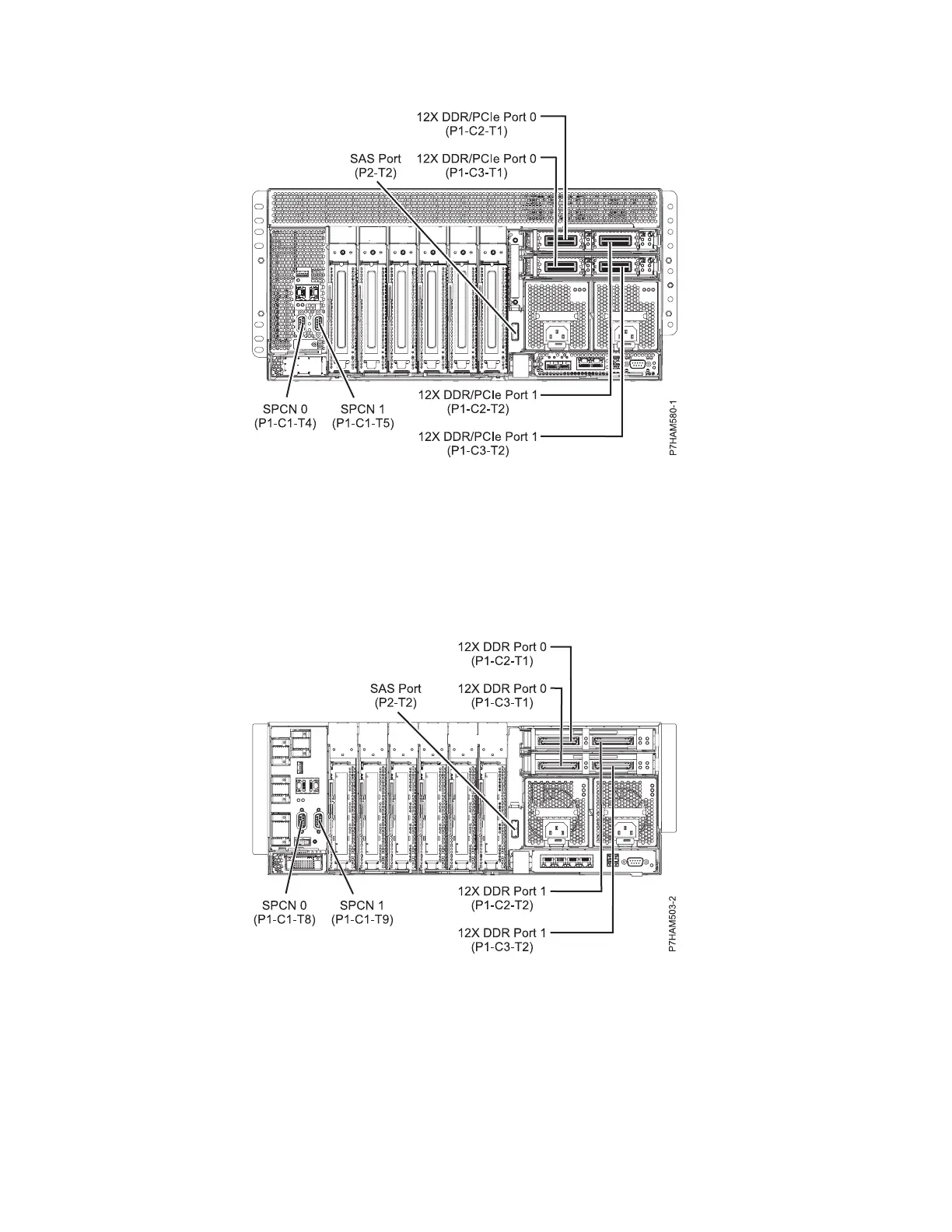

Figure 75. Model 8248-L4T, 8408-E8D, or 9109-RMD connector locations for expansion units, disk drive enclosures,
and PCIe storage enclosures
Figure 76. Model 9117-MMB or 9179-MHB connector locations
68 Power Systems: Installing the 5887 disk drive enclosure
