Model 8246-L2T connector locations
Learn about connector locations.
Model 8248-L4T, 8408-E8D, or 9109-RMD connector locations
Learn about connector locations.
The 8248-L4T, 8408-E8D, and 9109-RMD servers provide cable connector locations for the following
enclosures:
v Support for expansion units, as shown in the following figure, is as follows:
– The card installed in the C2 slot can contain two 12X double data rate (DDR) cable ports. However,
the C2 slot cannot provide both 12X DDR and PCIe cable ports.
– The card installed in the C3 slot can contain two 12X DDR cable ports. However, the C3 slot cannot
provide both 12X DDR and PCIe cable ports.
v Support for disk drive enclosures, as shown in the following figure, is as follows:
– The server contains a SAS port.
v Support for PCIe storage enclosures, as shown in the following figure, is as follows:
– The card installed in the C2 slot can contain two PCIe cable ports. However, the C2 slot cannot
provide both PCIe and 12X DDR cable ports.
– The card installed in the C3 slot can contain two PCIe cable ports. However, the C3 slot cannot
provide both PCIe and 12X DDR cable ports.

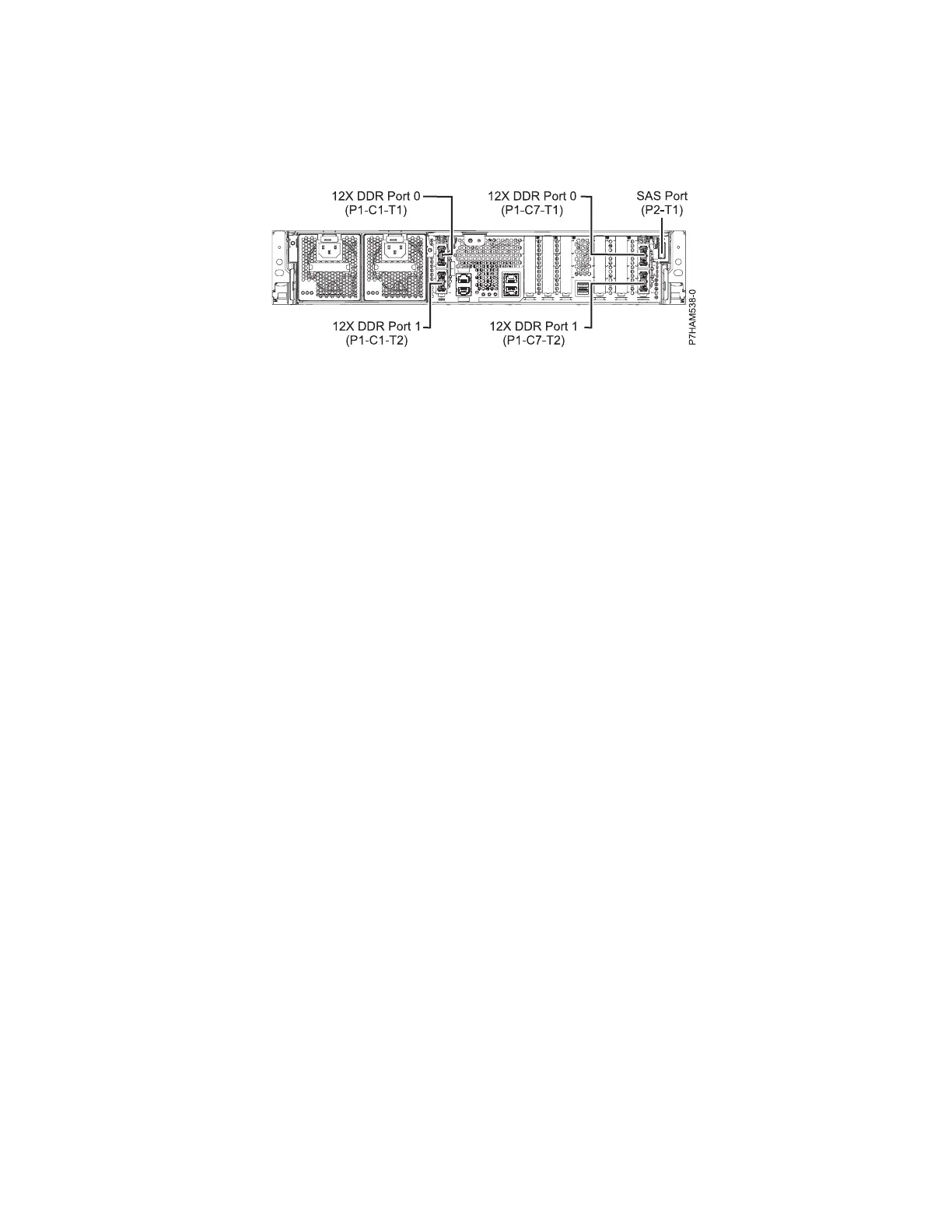

Figure 74. Model 8246-L2T connector locations
Reference information 67
