d. Reinstall the screws that you removed by inserting them into the same holes in the rack frame and
side rails from which you removed them. Tighten the screws with a screwdriver.
4. To dock and secure the ESM units, complete the following steps:
a. Moving one ESM at a time, slide the unit approximately 75 mm (3 in) toward the chassis.
b. For one ESM at a time, place your forefingers under the release levers and pinch the terracotta
lever tips. Release the levers and swing them into their fully open position.

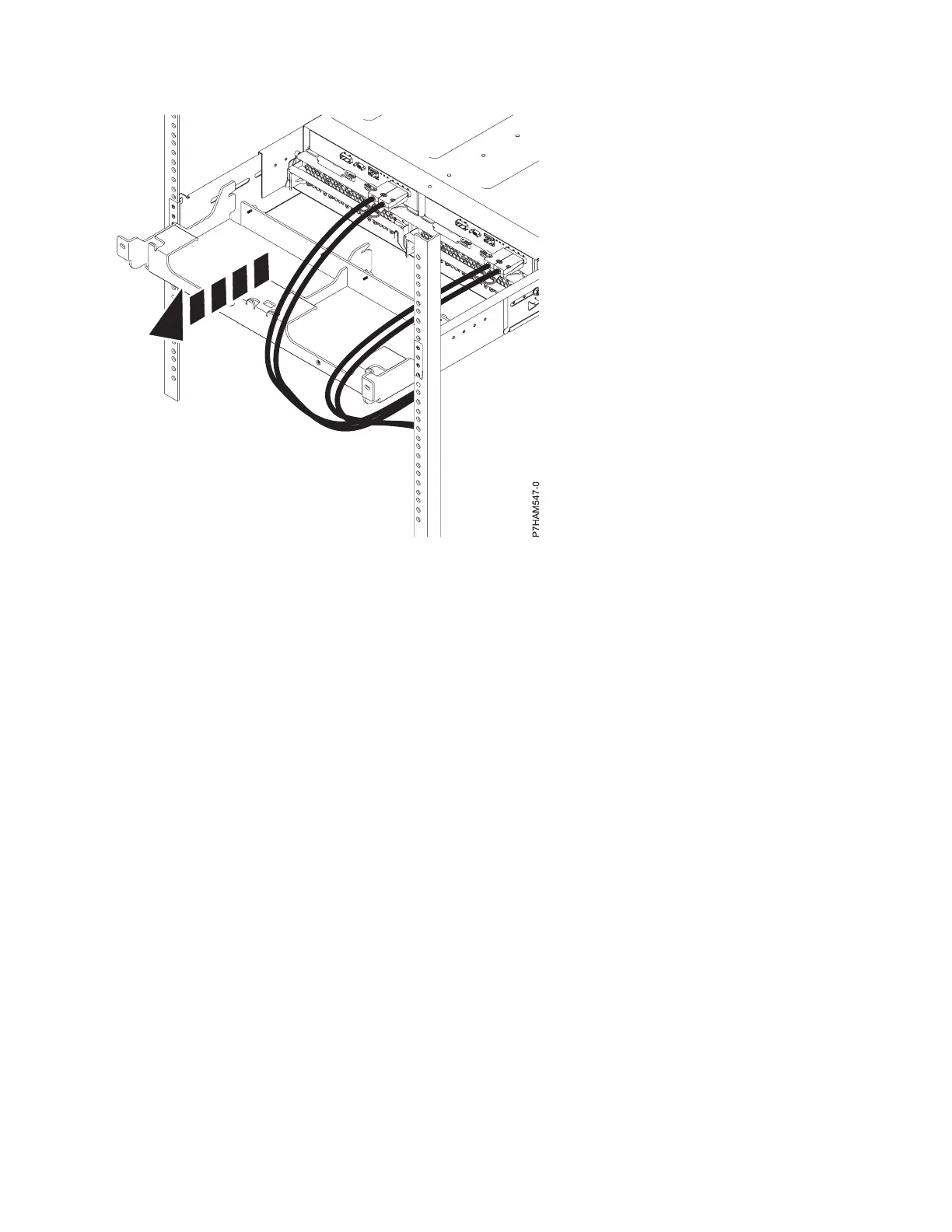

Figure 26. Removing the shipping bracket
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 27
