d. For one ESM at a time, place your thumbs on the tips of the terracotta ESM levers and swing the
levers into their fully closed and latched position.
5. To dock and secure the power supplies, complete the following steps:
a. Moving one power supply at a time, slide the unit approximately 75 mm (3 in) away from the
chassis.

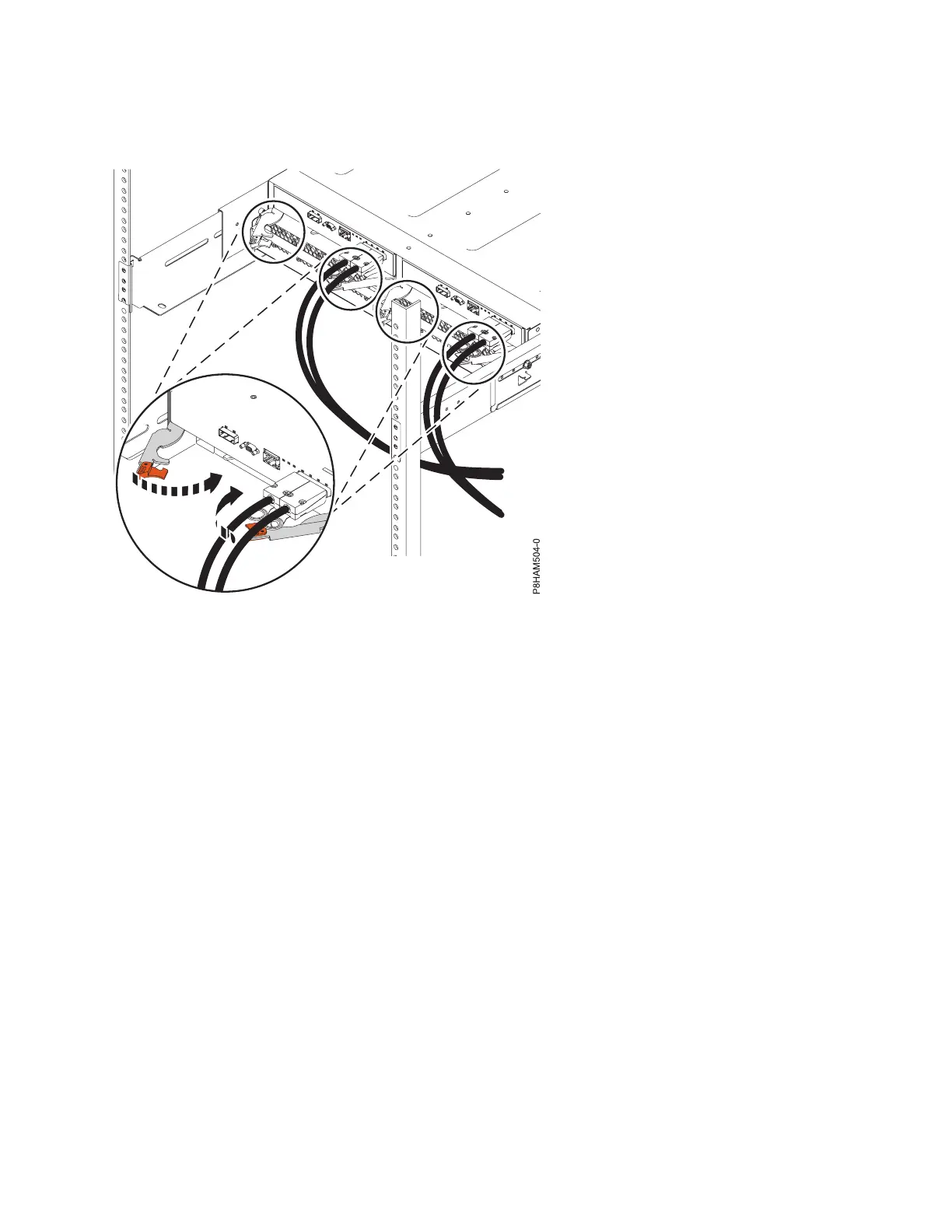

Figure 29. Closing the ESM release levers
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 29
