Continue with “Connecting cables, power cords, and installing side covers on your preinstalled
enclosure” on page 43.
19. Perform the mode 4 connection of one enclosure (A) by using X cables (B) to four independent SAS
adapters. See Figure 42 on page 42.

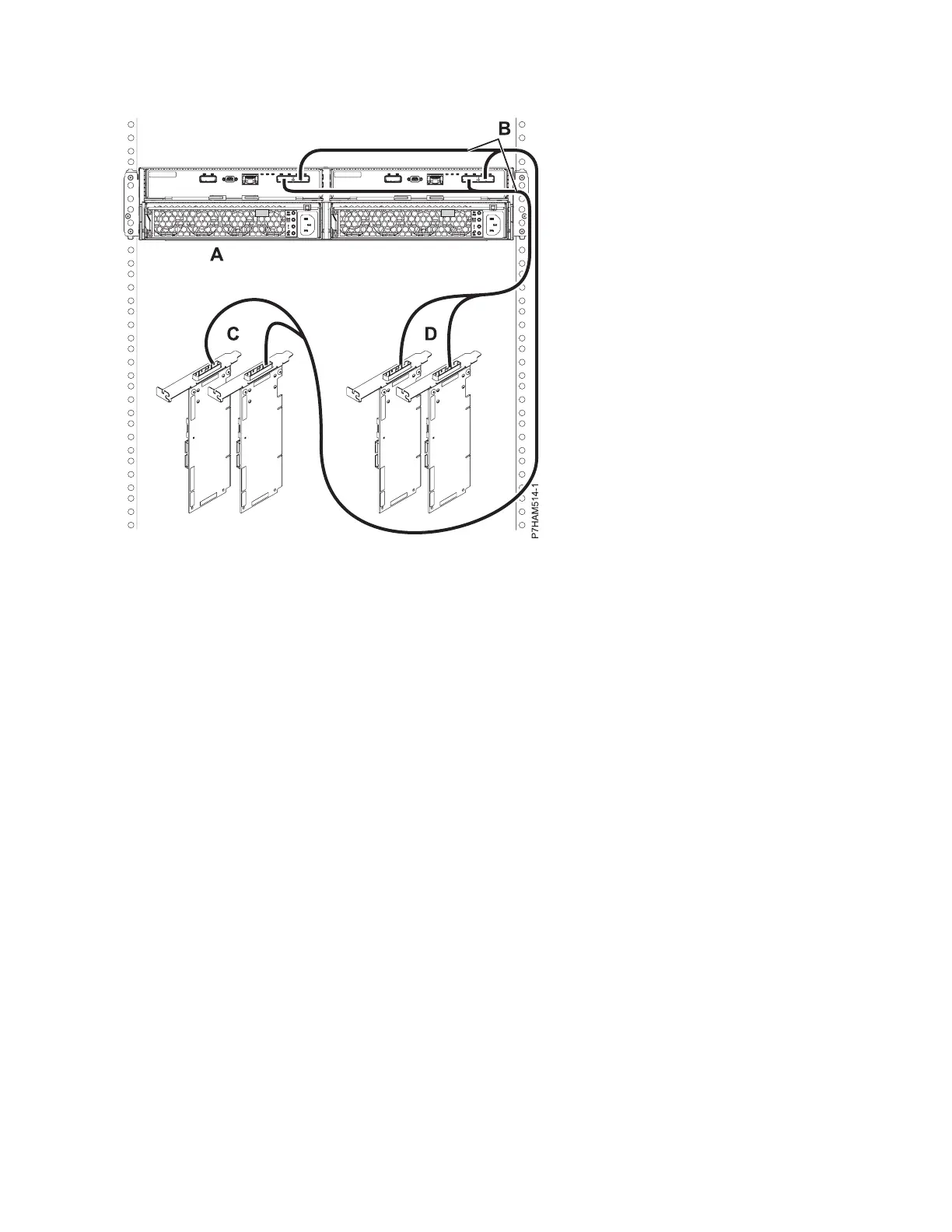

Figure 41. Mode 2 connection of one 5887 disk drive enclosure by using X cables to two SAS adapter pairs
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 41
