REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2

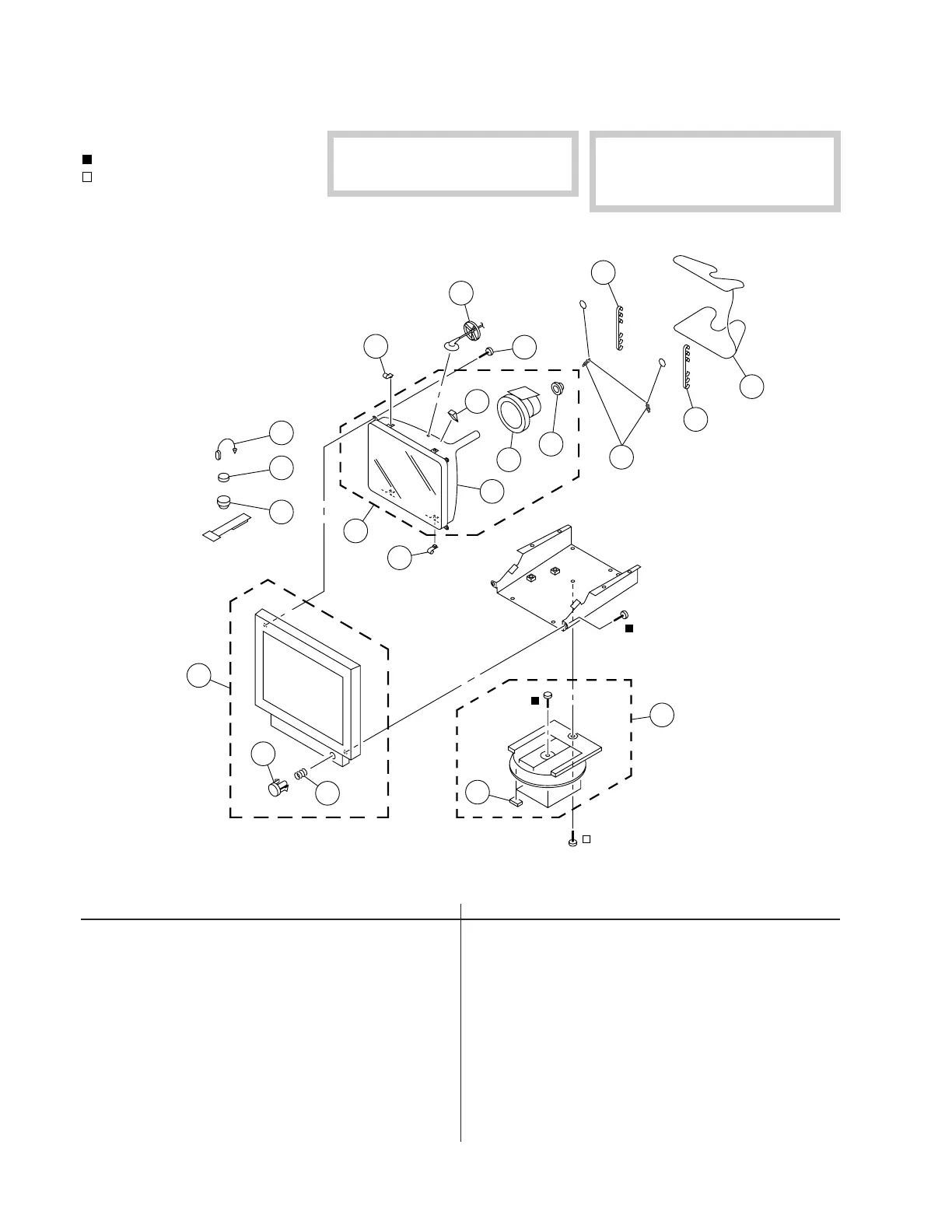

6-2. PICTURE TUBE
7-685-663-71 +BVTP 4X16
7-685-881-09 +BVTT 4X8
The components identified by mark
¡
are critical for safety.
Replace only with part number specified.
Les composants identifiés par une
marque
¡
sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
58
67
51
59
59
68
52
60
69
53
61
62
62
63
54
64
55
65
56
66
57
51 X-4036-871-1 BEZEL ASSY [23N, 23S, 33N] 52,53
51 X-4036-916-1 BEZEL ASSY [63N, 63S, 73N] 52,53
52 4-071-258-01 BUTTON, POWER [23N, 23S, 33N]
52 4-071-258-11 BUTTON, POWER [63N, 63S, 73N]
53 3-653-339-01 SPRING, COMPRESSION
54 ¡ 8-738-550-61 ITC ASSY (17TKB-R1) 55-58
55 ¡ 8-738-549-05 PICTURE TUBE 17TKB (SOUTH)
[23S, 63S]
55 ¡ 8-738-550-00 PICTURE TUBE 17TKB(NORTH)
[33N, 73N]
55 ¡ 8-738-550-05 PICTURE TUBE 17TKB(NORTH)
[23N, 63N]
56 ¡ 8-451-435-12 DEFLECTION YOKE (Y17TKJ-M)
57 ¡ 1-452-923-41 NECK ASSEMBLY (NA-2915)
58 2-162-100-21 SPACER, DY
59 4-045-123-01 HOLDER, DEGAUSSING COIL
60 3-704-372-01 HOLDER, HV CABLE
61 * 4-047-316-01 SPRING, EXTENSION
62 * 4-369-319-00 BAND, COIL
63 1-419-255-21 COIL, DEMAGNETIC
64 4-365-808-01 SCREW (5), TAPPING
65 X-4036-872-1 STAND ASSY [23N, 23S, 33N] 66
65 X-4036-918-1 STAND ASSY [63N, 63S, 73N] 66
66 * 4-061-996-01 CUSHION
67 4-308-870-00 CLIP, LEAD WIRE
68 1-452-032-00 MAGNET, DISK ; 10mmø
69 1-452-094-00 MAGNET, ROTATABLE DISK ; 15mmø
