IBM 6552-23N - Picture Tube

6552-23N/23S/63N/63S

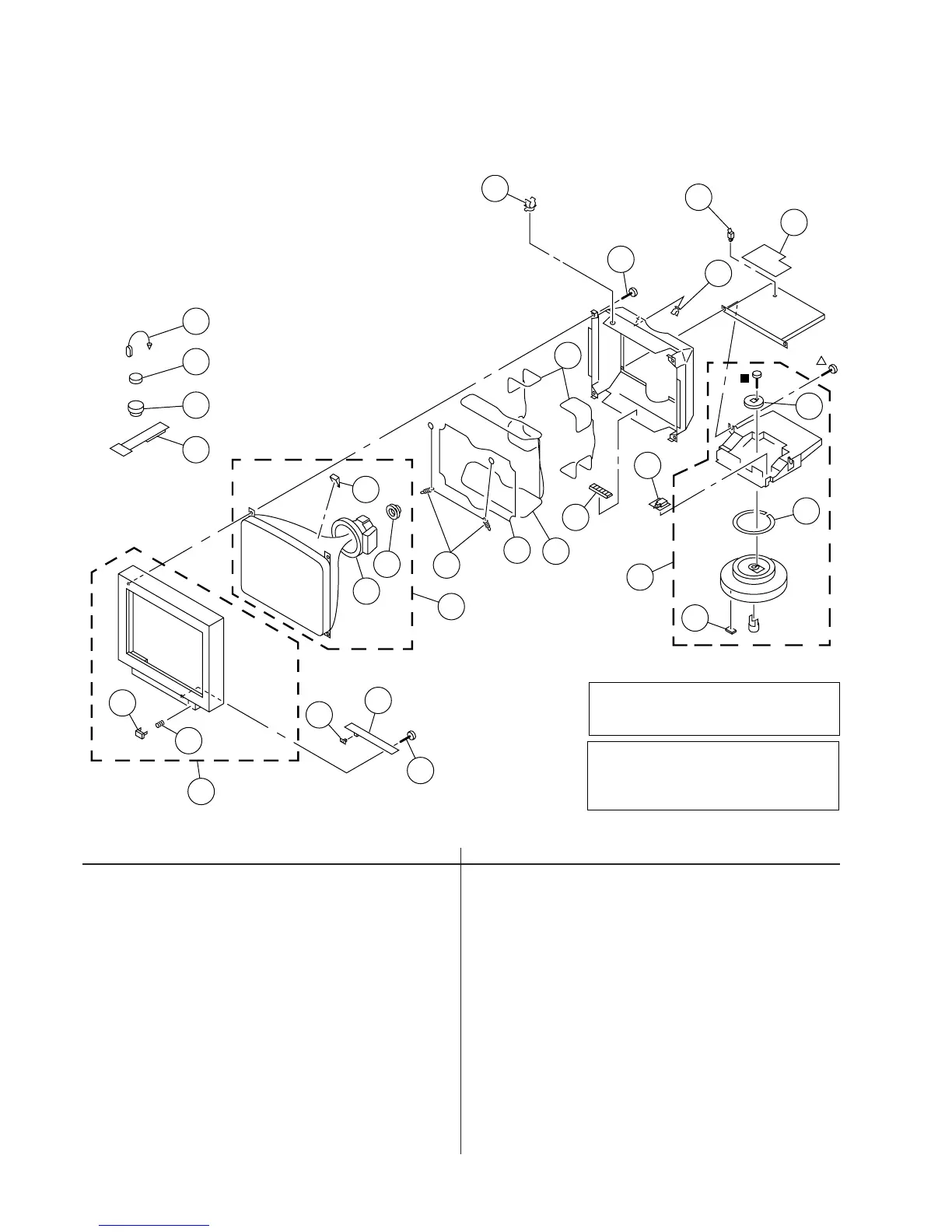

6-2. PICTURE TUBE
p 7-685-663-71 +BVTP 4X16
¢ 7-685-881-09 +BVTT 4X8
6-2
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
51 X-4036-785-1 BEZEL ASSY [23N/23S] 52-53
51 X-4037-214-1 BEZEL ASSY [63N/63S] 52-53
52 4-070-773-01 BUTTON, POWER [23N/23S]
52 4-070-773-11 BUTTON, POWER [63N/63S]
53 3-653-339-01 SPRING, COMPRESSION
57 4-070-777-01 COVER, SWITCH [23N/23S]
57 4-070-777-11 COVER, SWITCH [63N/63S]
58 * 8-933-391-00 H BOARD, COMPLETE
59 4-029-432-01 SCREW (3X12), (+) BVWHTP
60 8-738-813-61 ITC ASSY (21TKC-R1) [U/C, AEP, NH, J]
61-63
60 8-738-821-61 ITC ASSY (21TKC-RS1) [SH] 61-63
61 ¡ 8-451-509-11 DEFLECTION YOKE (Y21TKM-M3)
62 ¡ 1-452-912-61 NECK ASSY (NA-2914)
63 2-162-100-21 SPACER, DEFLECTION YOKE
64 * 4-047-316-01 SPRING, EXTENSION
65 ¡ 1-419-130-21 COIL, LANDING CORRECTION
66 ¡ 1-419-128-21 COIL, DEGAUSSING
67 ¡ 1-419-129-21 COIL, LANDING CORRECTION
68 4-062-670-01 SPACER, PICTURE TUBE
69 4-365-808-01 SCREW (5), TAPPING
70 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
71 * 8-933-401-00 N BOARD, COMPLETE
72 * 8-933-396-00 J BOARD, COMPLETE
73 X-4036-787-1 STAND ASSY [23N/23S] 74-76
73 X-4037-128-1 STAND ASSY [63N/63S] 74-76
74 4-061-396-01 STOPPER (A)
75 4-063-397-01 RING, TILT SWIVEL
76 * 4-061-996-01 CUSHION
77 4-308-870-00 CLIP, LEAD WIRE
78 1-452-032-00 MAGNET, DISK: 10mmφ
79 1-452-094-00 MAGNET, ROTATABLE DISK: 15mmφ
80 4-051-736-21 PIECE A (90), CONV. CORRECT
81 4-071-175-01 HOLDER, DGC
82 4-041-021-02 HOLDER, DEGAUSE COIL
The components identified ¡ marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque ¡
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
#1
60
70
80
51
61
71
52
62
72
53
63
64
74
65
75
66
76
73
57
67
77
58
68
78
59
69
82
79
81
