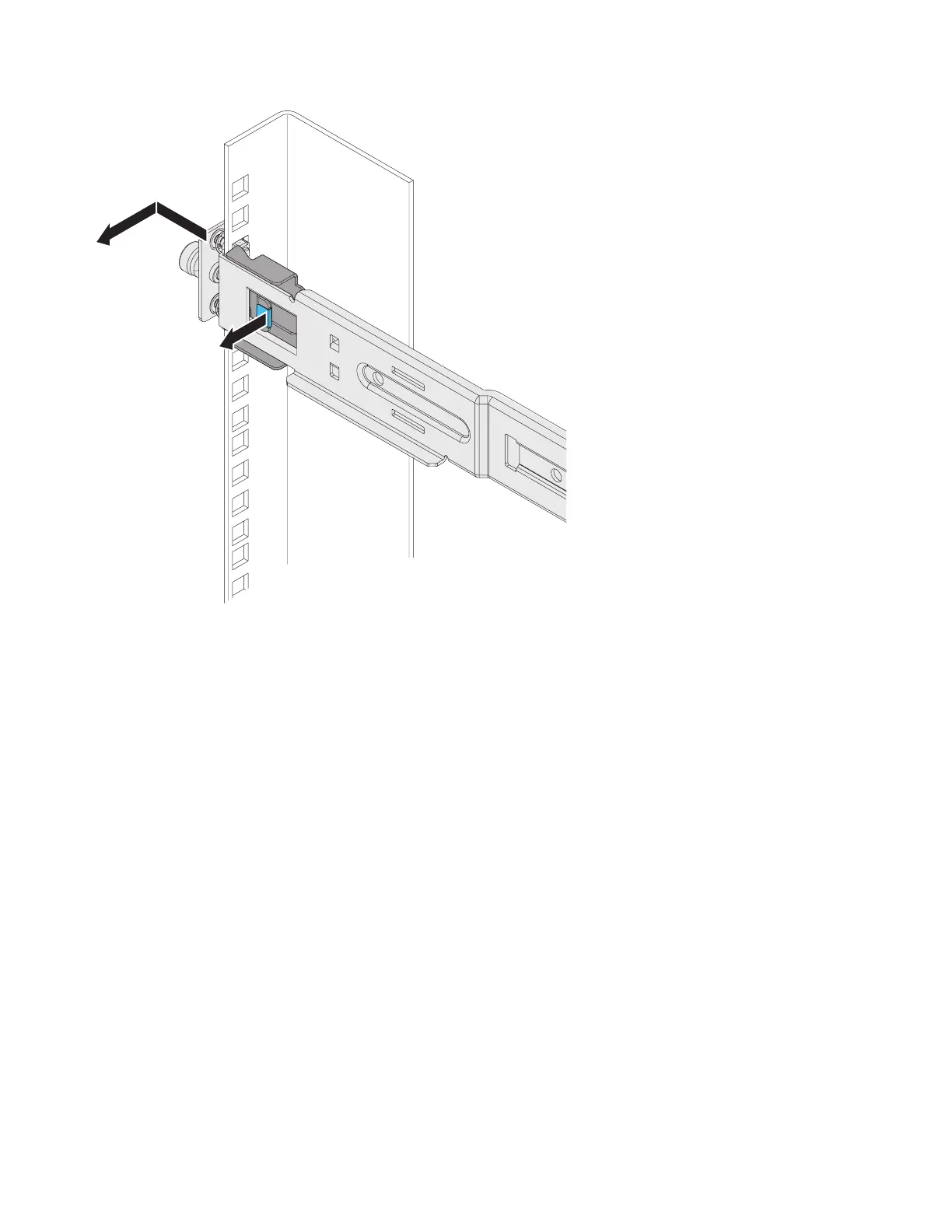

2. Remove the front bracket of the outer slide-rail from the rack by pulling the blue tab out 1 while you
pull the end of the slide-rail away from the rack flange and toward the center of the rack 2. Repeat
step 1 and step 2 for the other outer slide-rail.
1
2
P8EGB528-0
44 Power Systems: 7316-TF4 18.5-Inch Flat Panel Rack-Mounted Monitor and Keyboard
