Specifications
Item Description
Adapter FRU number
00E7167 (Designed to comply with RoHS requirement)
Connector plug part number
00FW784 (The connector plug is installed in an empty port and prevents damage to that port
whenever a cable for the adjacent port connectors is plugged-in or removed.)
I/O bus architecture
PCIe 3.0 but compatible to PCIe 2.0 or PCIe 1.0 slots.
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, low-profile but packaged for full-height installations
Cables
Specific AE1 or YE1 SAS cable features with new narrow HD connectors are used to attach the
adapter to SAS devices.
SAS device attachment requires specific cables that are provided with the subsystem or device
features that are being attached. See Serial attached SCSI cable planning.
Attributes
v Four external mini SAS HD 4x connectors provide attachment of SAS devices

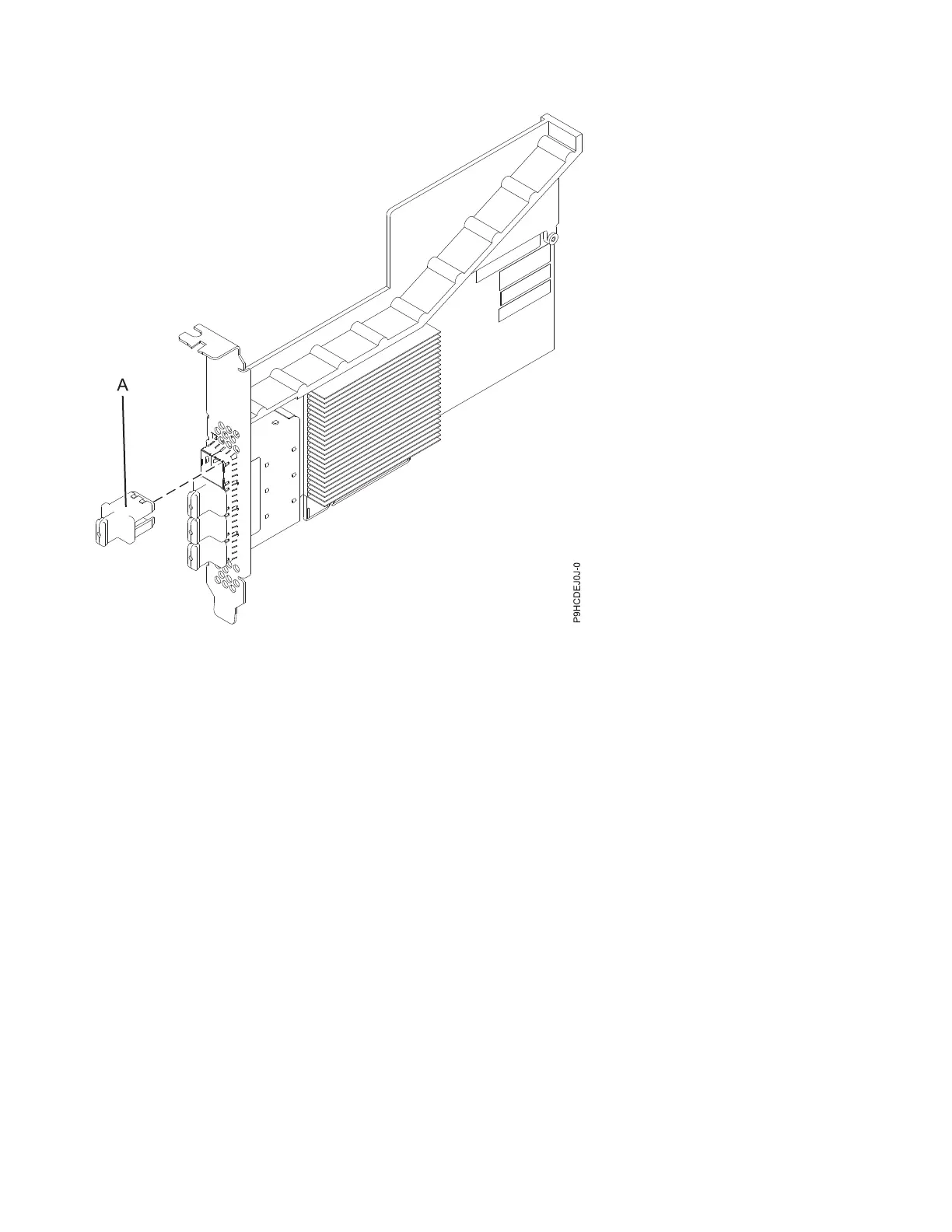

Figure 40. PCIe3 4 x8 SAS Port Adapter
90 Managing PCIe adapters
