v The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained
state.
v The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that
the adapter is in the identify function state.
Specifications
Item Description
Adapter FRU number
000RR809 (Designed to comply with RoHS requirement).
I/O bus architecture
PCIe3 x16
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
12 V
Form factor
Low profile, double-wide adapter
PCIe3 Optical Cable Adapter (FC EJ07; CCIN 6B52)
Learn about the specifications and operating system requirements for the feature code (FC) EJ07 adapter.
Overview
The PCIe3 Optical Cable Adapter is a double-wide, low-profile, PCIe generation 3 (PCIe3) adapter. The
adapter provides two optical ports for the attachment of two active optical cables (AOC). One adapter
supports the attachment of one PCIe3 6-slot fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.

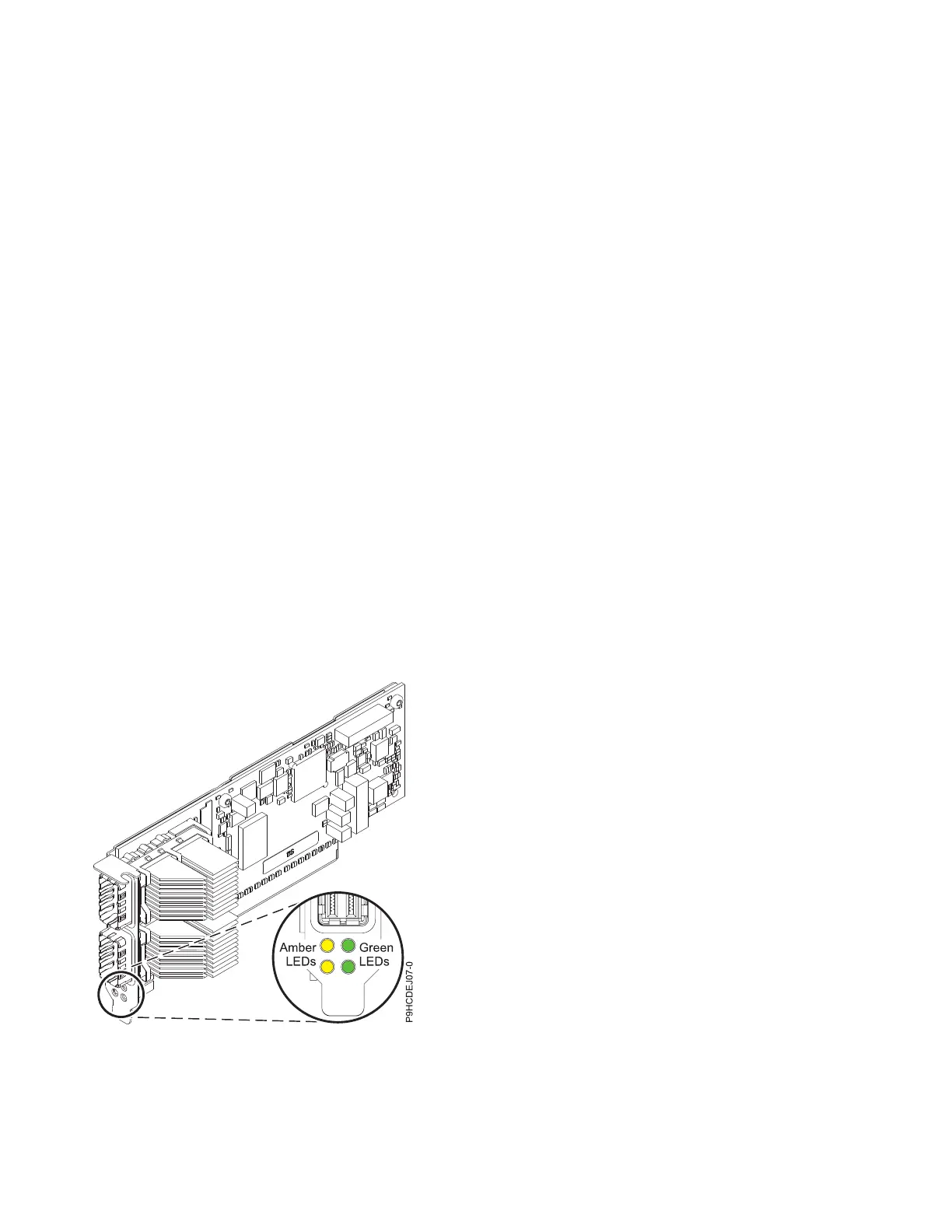

Note: The LEDs that are shown in Figure 34 indicate the following states:
v The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained
state.
Figure 34. PCIe3 x16 GPU adapter
78 Managing PCIe adapters
