v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).
4-port Async EIA-232 PCIe Adapter (FC 5785; CCIN 57D2)
Learn about the features, operating system requirements, and installation procedures for the feature code
(FC) 5785 adapters.
Overview
The FC 5785 is a full-height adapter similar to FC 5277 (PCIe LP 4-port Async EIA-232 adapter), which is
the low-profile adapter.
The 4-port Async EIA-232 PCIe Adapter provides connections for four asynchronous EIA-232 devices
using a 4-port DB-9F DTE fan-out cable. Ports are programmable to support EIA-232 protocols at a line
speed of 128 Kbps.
The following figures show the adapter and cable.

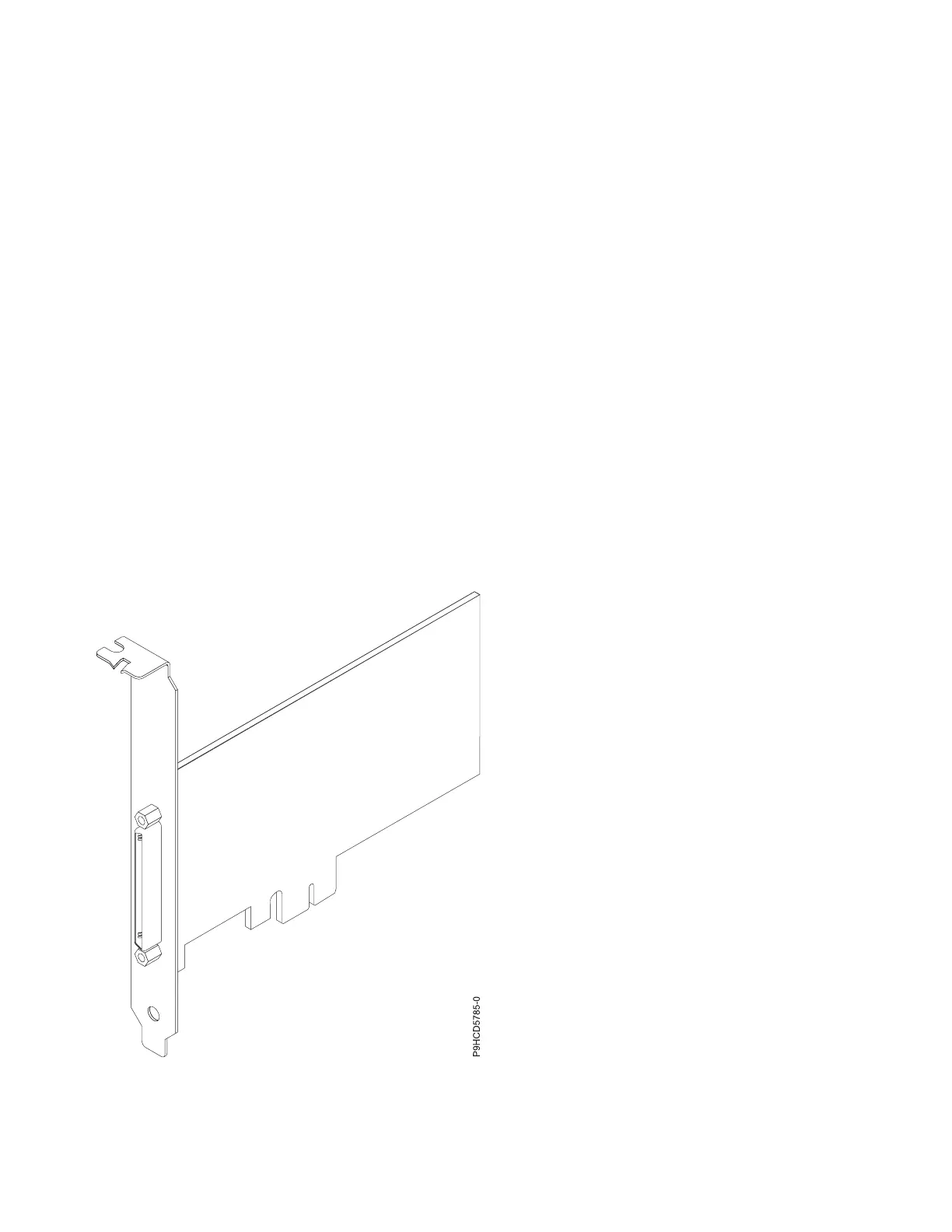

Figure 10. 4-port Async EIA-232 PCIe Adapter
36 Managing PCIe adapters
