v The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that
the adapter is in the identify function state.
Specifications
Item Description
Adapter FRU number
000TK704 (Designed to comply with RoHS requirement).
I/O bus architecture
PCIe3 x16
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
12 V
Form factor
Full-height, full-length
PCIe3 cable adapter (FC EJ08; CCIN 2CE2)
Learn about the specifications and operating system requirements for the feature code (FC) EJ08 adapter.
Overview
FC EJ08 is a full-height, half-length PCIe3 cable adapter. The adapter provides two optical ports for the
attachment of two active optical cables (AOC). One adapter supports the attachment of one PCIe3 6-slot
fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.
Note: The LEDs that are shown in Figure 35 indicate the following states:

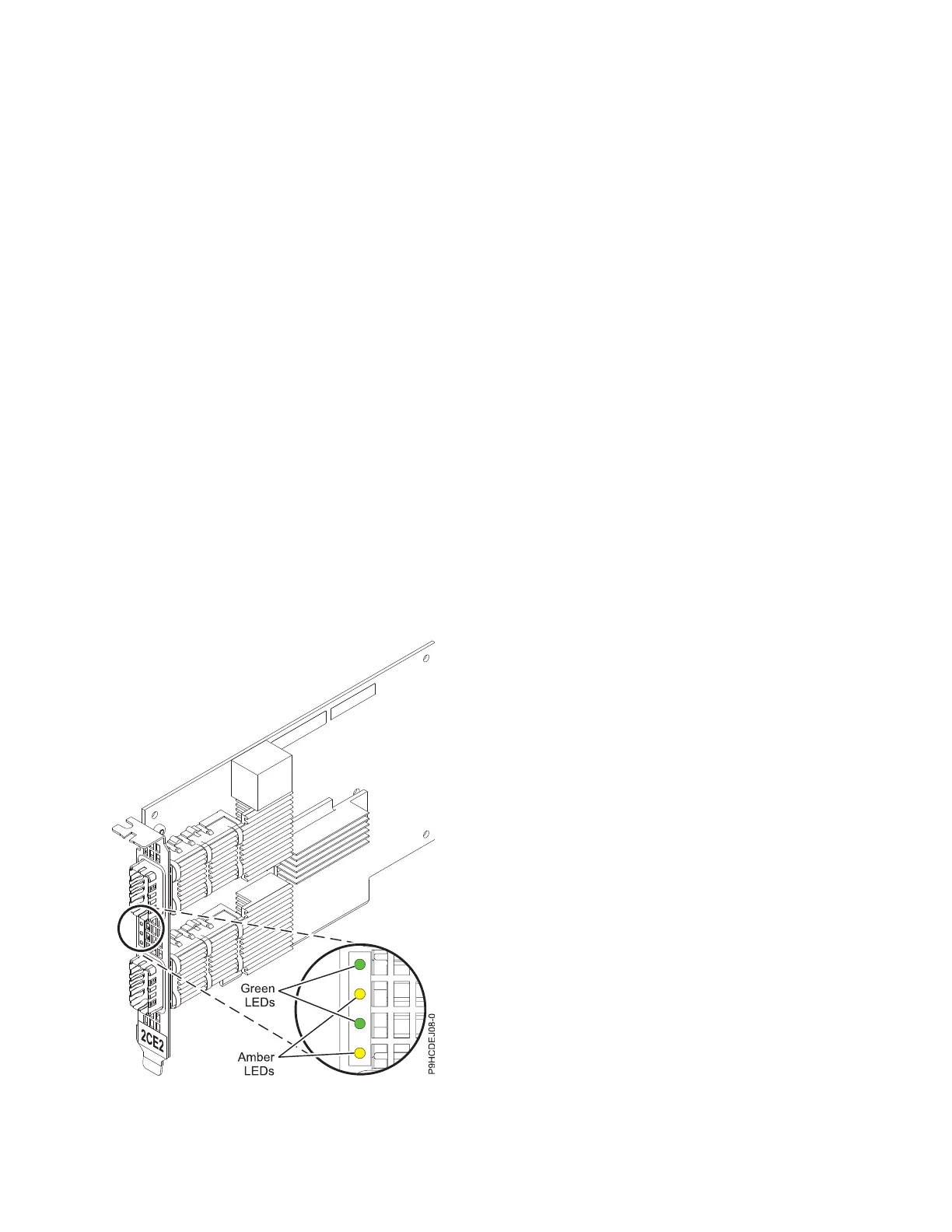

Figure 35. PCIe3 cable adapter
Managing PCIe adapters 79
