v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).
PCIe 8 Gb 2-port Fibre Channel Adapter (FC EL58; CCIN 577D)
Learn about the specifications and operating system requirements for the feature code (FC) EL58 adapter.
Overview
The 8 Gigabit PCI Express Dual Port Fibre Channel Adapter is a high-performance adapter based on the
Emulex LPe12002 PCIe Host Bus Adapter (HBA). Each port provides single initiator capability over a
fibre link. The ports have LC type connectors and utilize shortwave laser optics. The adapter connects to
fibre channel switches and operates at link speeds of 2, 4, and 8 Gbps. The adapter automatically
negotiates with the switch to the highest speed of which the switch is capable. LEDs on each port
provide information on the status and link speed of the port.
The following figure shows the adapter:
Adapter specifications
Item Description
FRU number
10N9824 (Designed to comply with RoHS requirement)
Wrap plug FRU number
12R9314 (Designed to comply with RoHS requirement)
11P3847 (Not designed to comply with RoHS requirement)

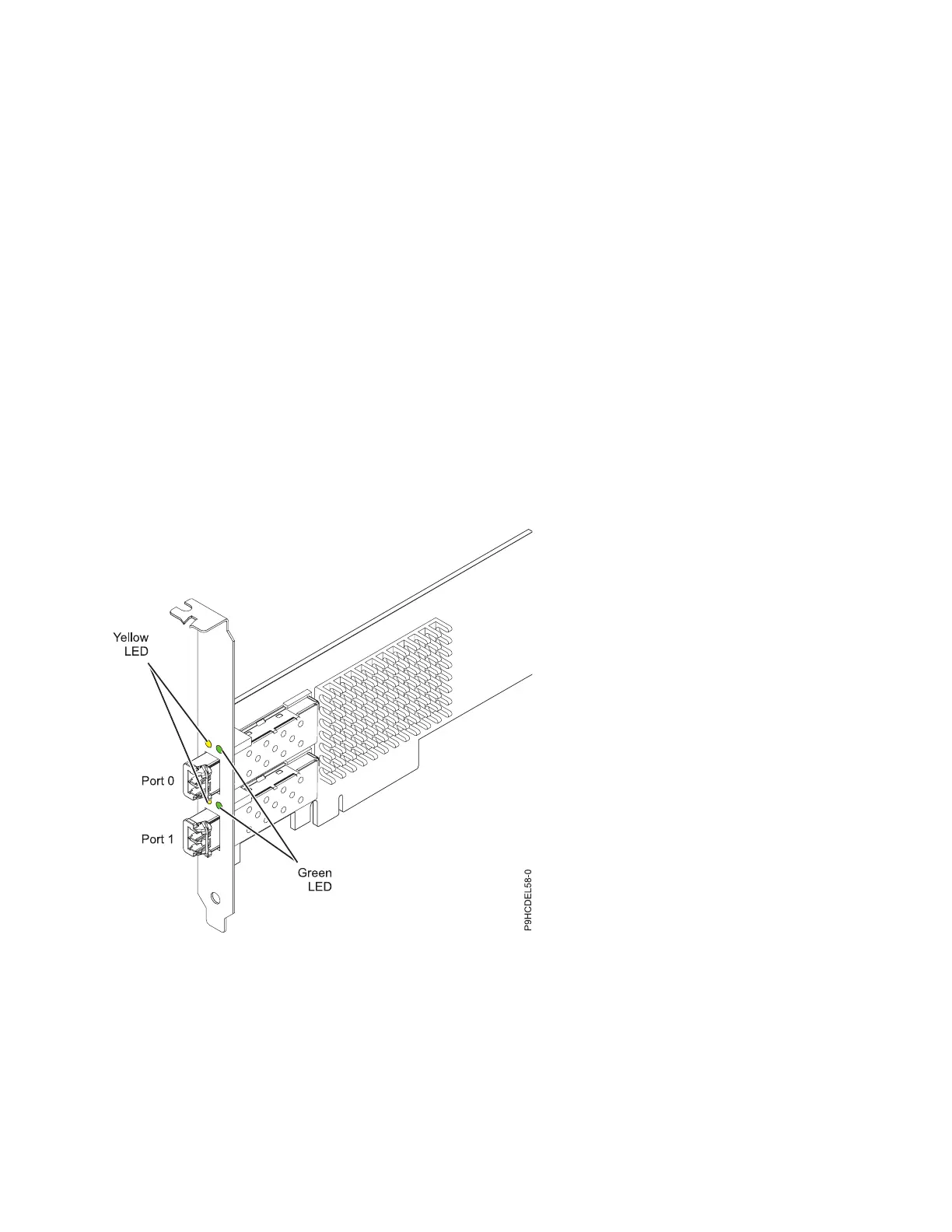

Figure 62. PCIe 8 Gb 2-port Fibre Channel Adapter
Managing PCIe adapters 135
