Specifications
Item Description
Adapter FRU number
00E8140 (Designed to comply with RoHS requirement)
Wrap plug FRU number
12R9314 (for Fibre LC connector)
10N7405 (for RJ45 connector)
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Cables
SR SFP+ Copper Twinax and Cat5 Ethernet cables
Voltage
3.3 V, 12 V
Form factor
Short, low-profile
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).

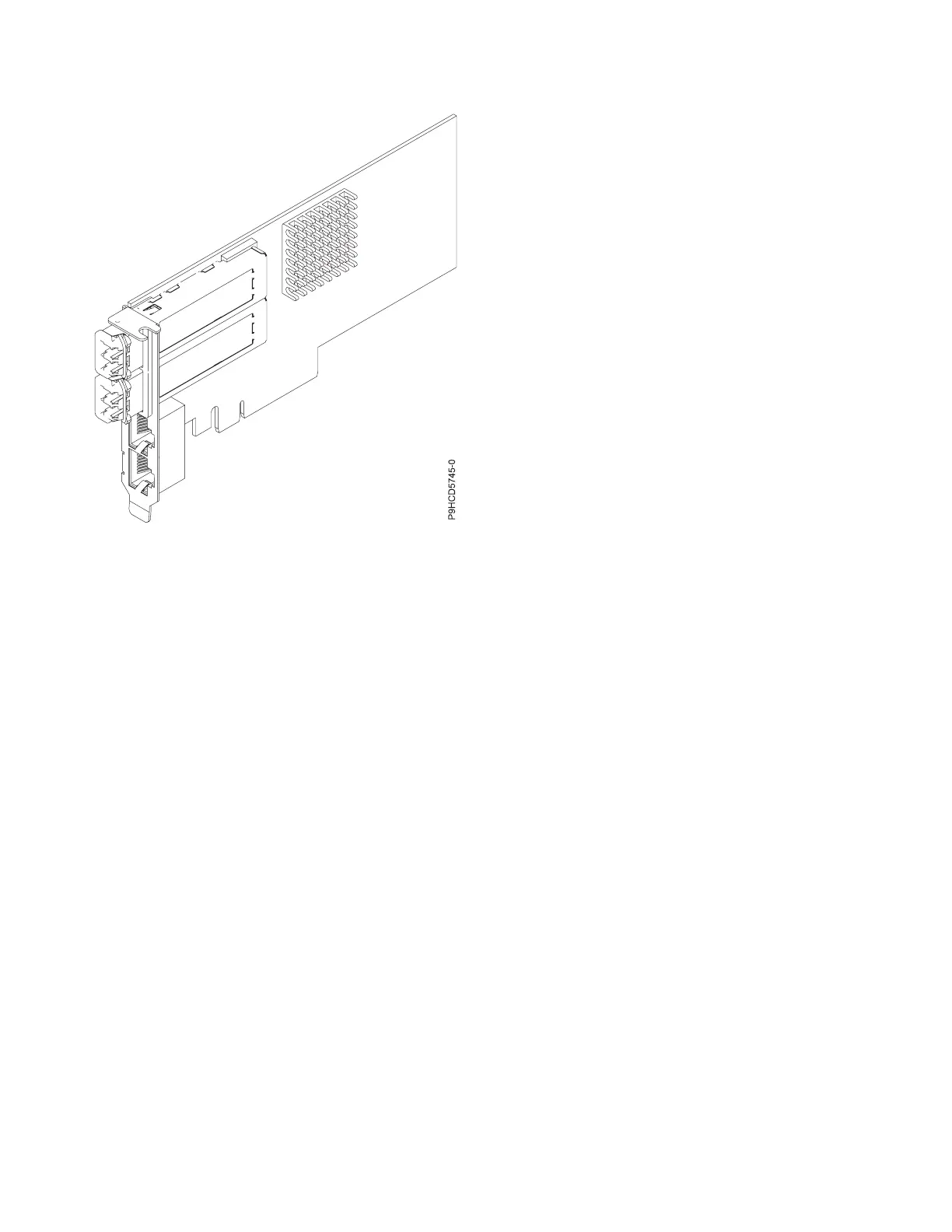

Figure 61. PCIe2 4-port (10 Gb FCoE and 1 GbE) Copper and RJ45 Adapter
134 Managing PCIe adapters
