Specifications
Item Description
Adapter FRU number
000E9284 (Designed to comply with RoHS requirement)
Wrap plug FRU number
12R9314 (for Fibre LC connector)
10N7405 (for RJ45 connector)
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V, 12 V
Form factor
Short, regular sized bracket, low-profile capable
Cables
SR SFP+ optical fiber cables and Cat5 Ethernet cables
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).

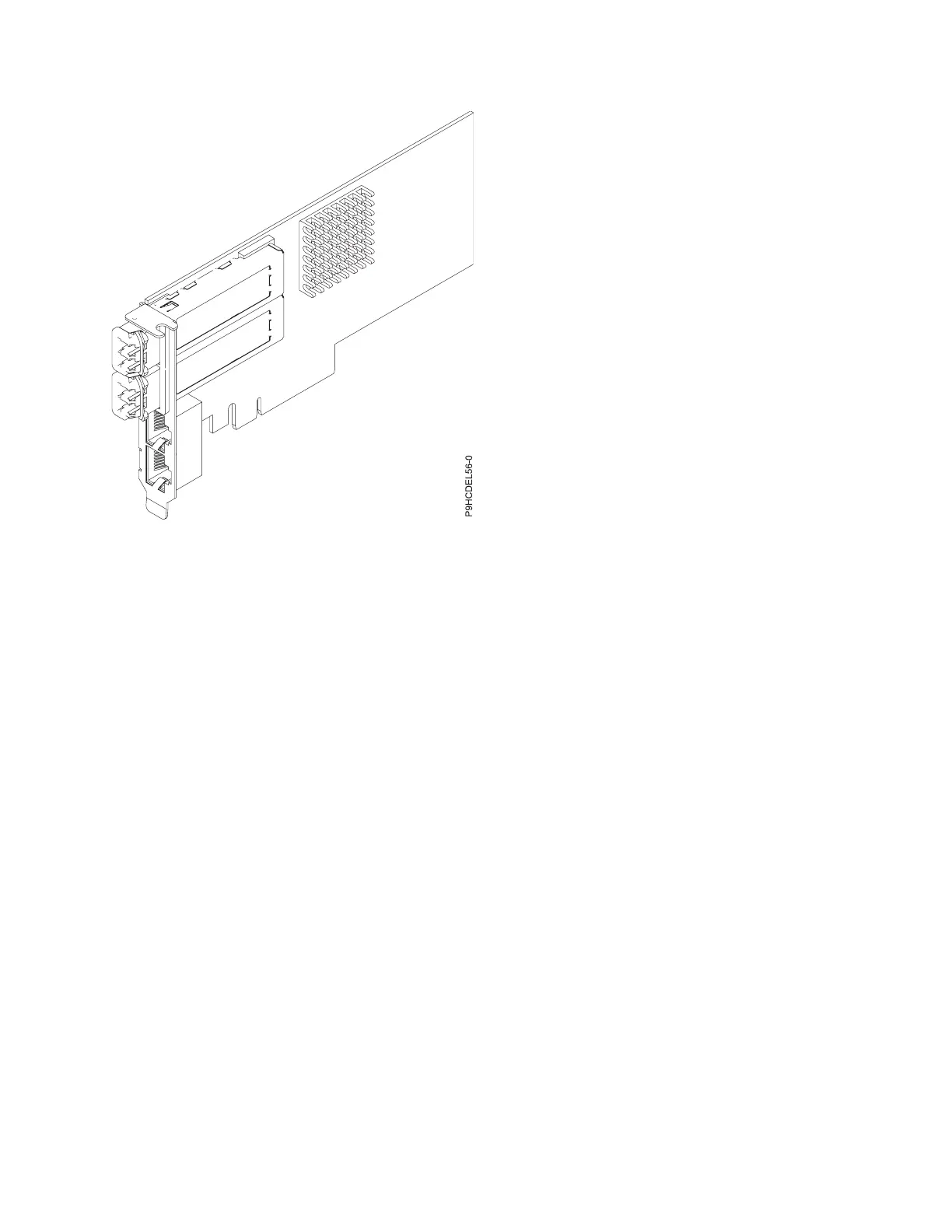

Figure 63. PCIe2 LP 2x10 Gb FCoE 2x1 GbE SFP+ Adapter
Managing PCIe adapters 139
