Specifications
Item Description
Adapter FRU number
00E3502 (Designed to comply with RoHS requirement)
Low-profile bracket part number 00ND496
Wrap plug FRU number
74Y7010
10N7405
Note: These wrap plugs are not included with the card. 12R9314 (FC ECW0) is the only wrap
plug that can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V, 12 V
Form factor
Short, low-profile
Cables
See “Cables” on page 162 for details

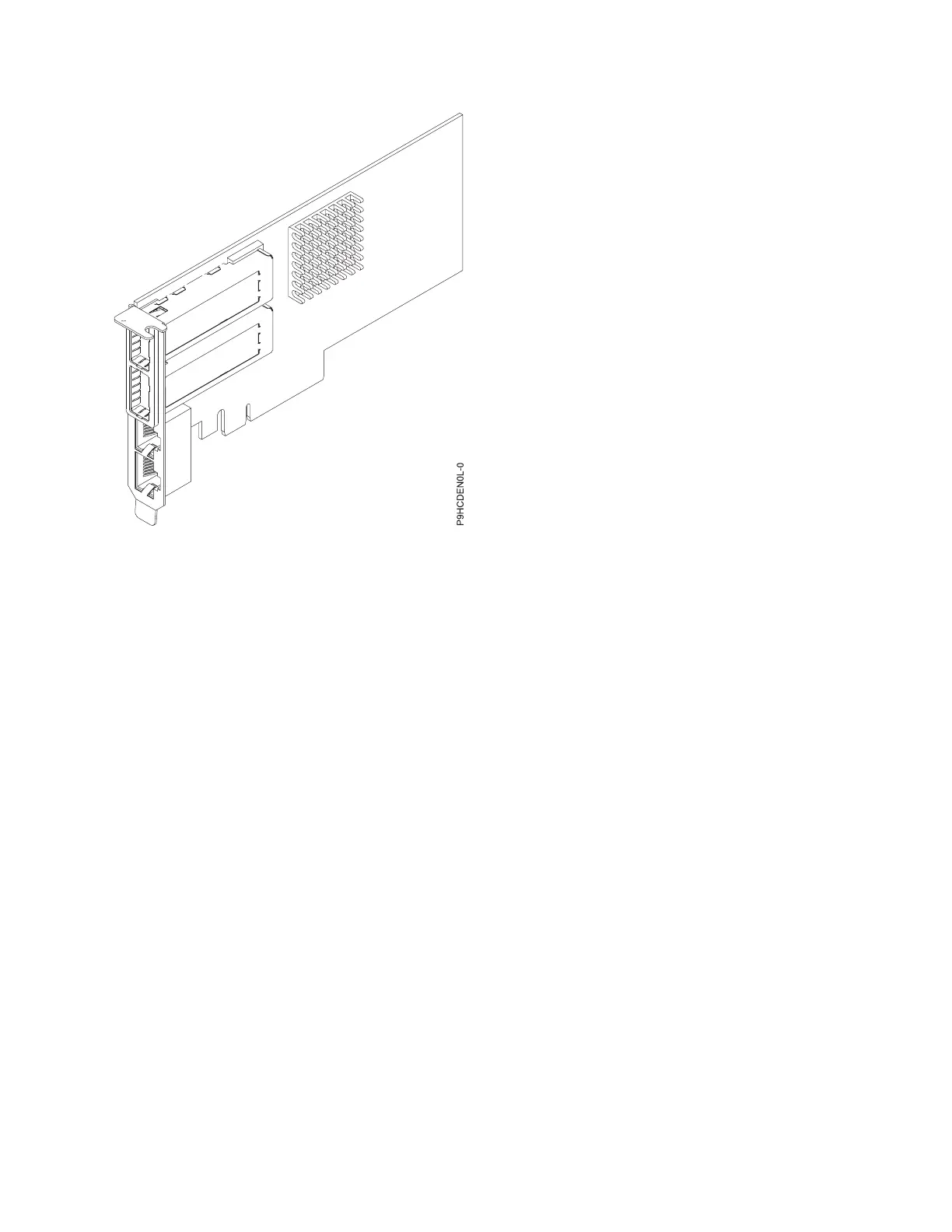

Figure 72. PCIe3 LP 4-port (10 Gb FCoE and 1 GbE) Copper and RJ45 Adapter
Managing PCIe adapters 161
