v Compliant with European Union Directive 2002/95/EC on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment
Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX and IBM i operating
systems.
Specifications
Item Description
Adapter FRU number
00E2715 (Designed to comply with RoHS requirement)
Regular-height tailstock part number: 00E2863
Low-profile tailstock part number: 00E2720
Wrap plug FRU number
12R9314 (SFP+ SR wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: These wrap plugs are not included with the card. 12R9314 (FC ECW0) is the only wrap
plug that can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V

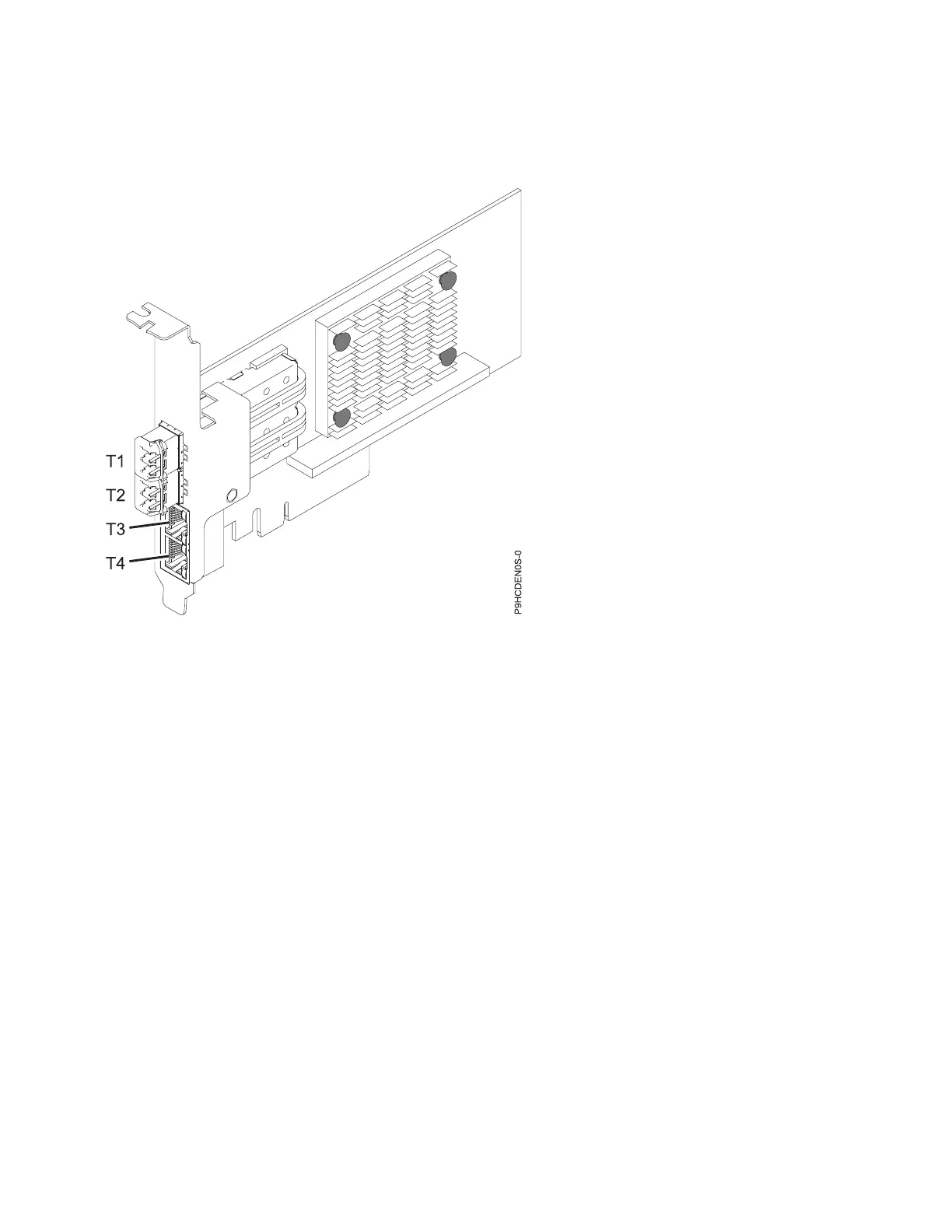

Figure 74. PCIe3 4-Port (10 Gb + 1 GbE) SR+RJ45 Adapter
164 Managing PCIe adapters
