Note: The ports are numbered from top to bottom of the adapter as T1, T2, and so on for the AIX
®
and
IBM
®
i operating systems.
Specifications
Item Description
Adapter FRU number
00E2715 (Designed to comply with RoHS requirement)
Low-profile tailstock part number: 00E2720
Wrap plug FRU number
12R9314 (SFP+ SR wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: These wrap plugs are not included with the card. 12R9314 (FC ECW0) is the only wrap
plug that can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, low-profile

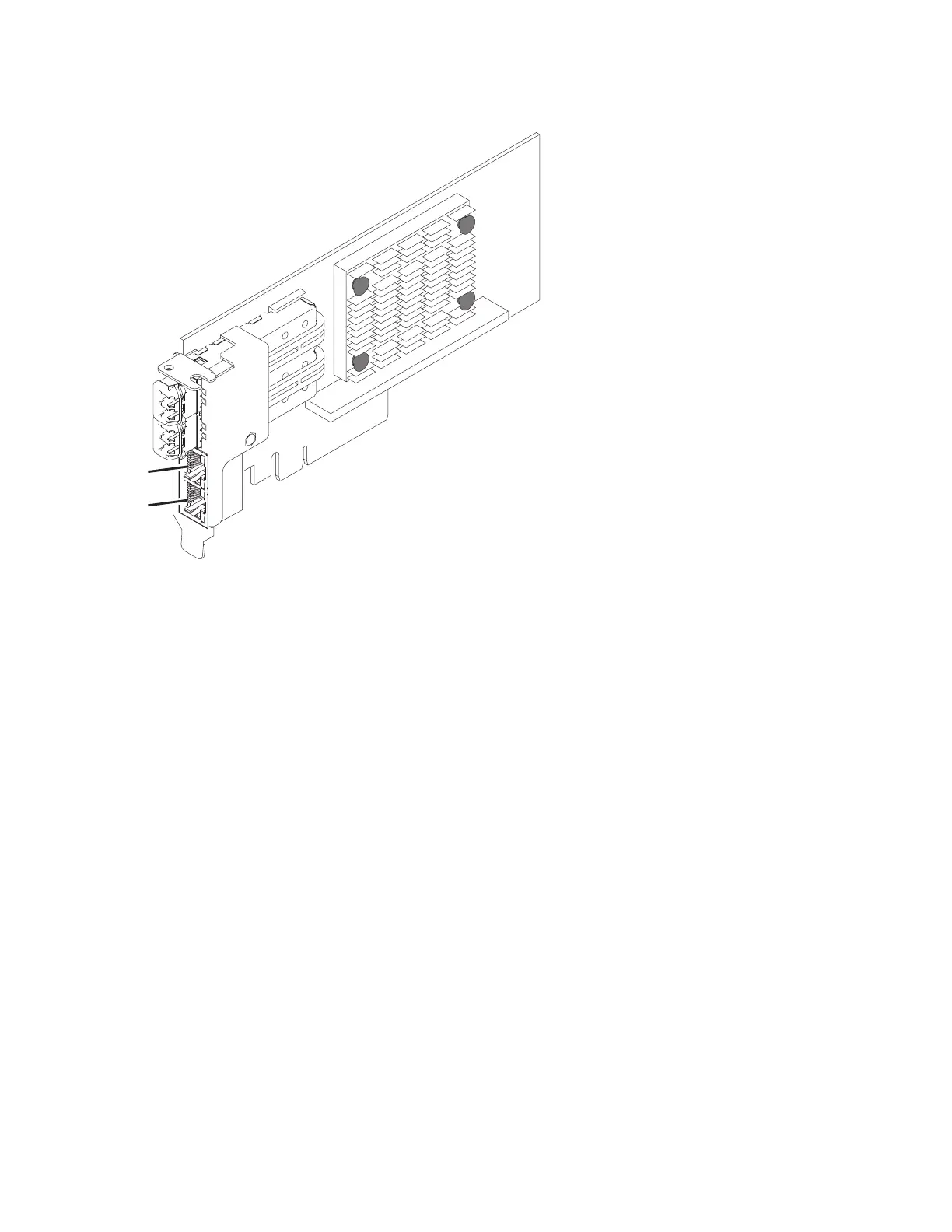

Figure 75. PCIe3 LP 4-Port (10Gb+1GbE) SR+RJ45 Adapter
Managing PCIe adapters 167
