Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX
®
and IBM
®
i
operating systems.
Specifications
Item Description
Adapter FRU number
00E2715 (Designed to comply with RoHS requirement)
Low-profile tailstock part number: 00E2720
Wrap plug FRU number
74Y7010 (Twinax wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: Wrap plugs are not included with the card and cannot be purchased from IBM.
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, regular-height tailstock, low-profile capable
Cables
See “Cables” on page 171 for details.

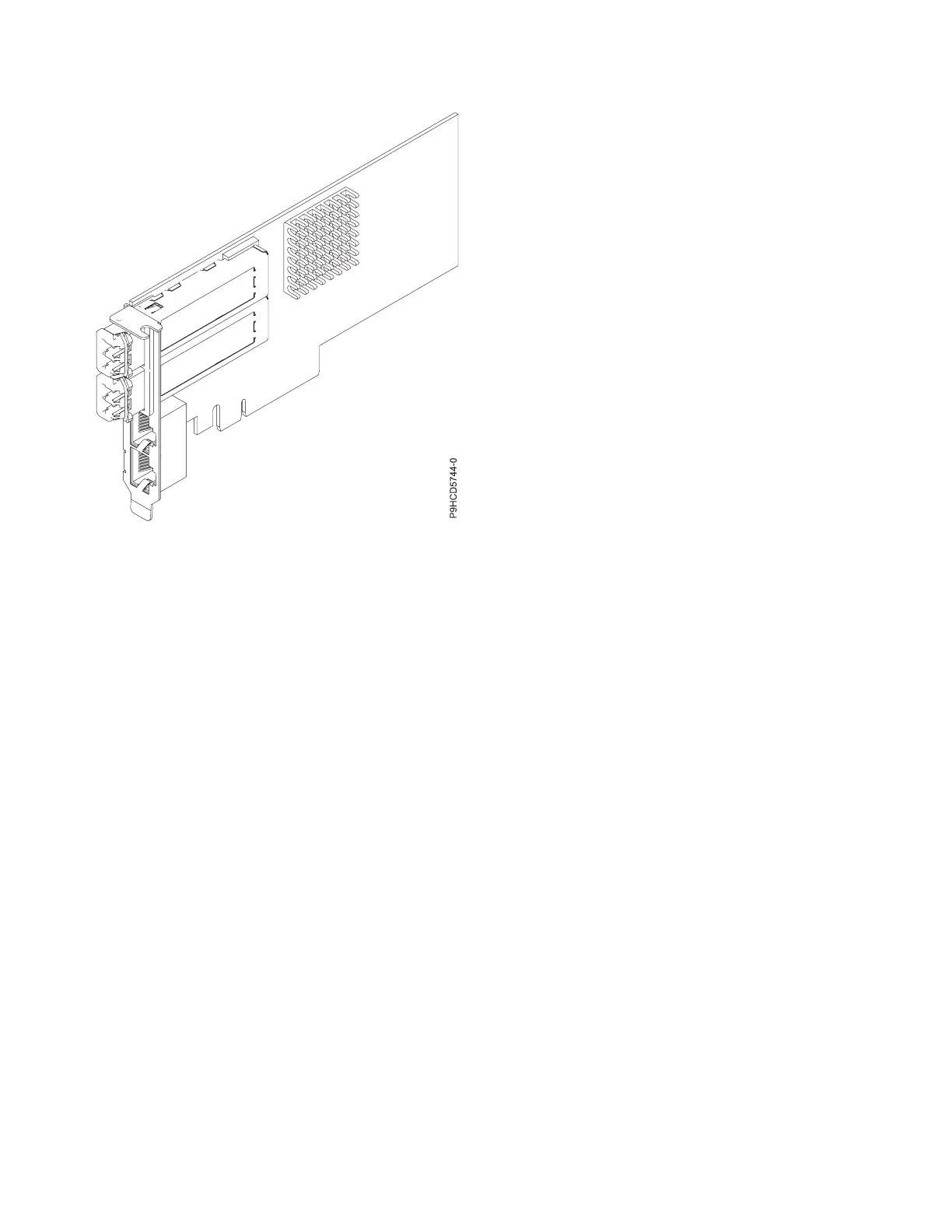

Figure 76. PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter
170 Managing PCIe adapters
