v Supports TCP segmentation or large send offload
v Supports EEPROM-SPI and single EEPROM
v Compliant with European Union Directive 2002/95/EC on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment
Specifications
Item Description
Adapter FRU number
00E2714 (Designed to comply with RoHS requirement)
Low-profile tailstock part number: 00E2721
Wrap plug FRU number
10N7405 (RJ45 wrap plug)
Note: Wrap plugs are not included with the card and cannot be purchased from IBM.
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Cables
CAT-6A cable
Voltage
3.3 V
Form factor
Short, low-profile
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:

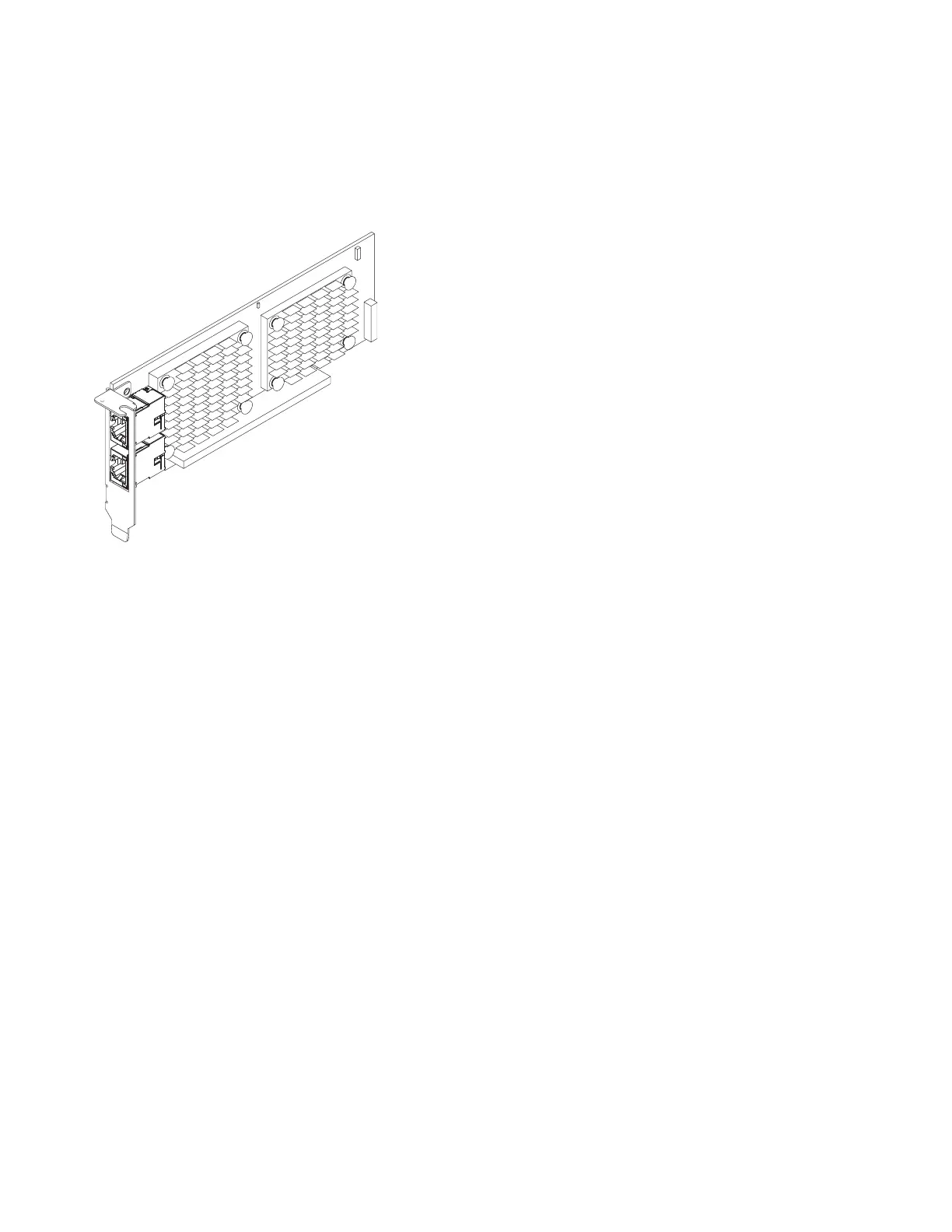

Figure 80. PCIe2 LP 2-port 10 GbE BaseT RJ45 Adapter
178 Managing PCIe adapters
