Specifications
Item Description
Adapter FRU number
xx (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V, 12 V
Form factor
Short, low-profile (FC EC5C)
Short, with full-height tailstock (FC EC5D)
Maximum number
For details about the maximum number of adapters that are supported, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Attributes provided
3.2 TB of low latency flash memory
Non-Volatile Write Buffer
Hot Plug Capable

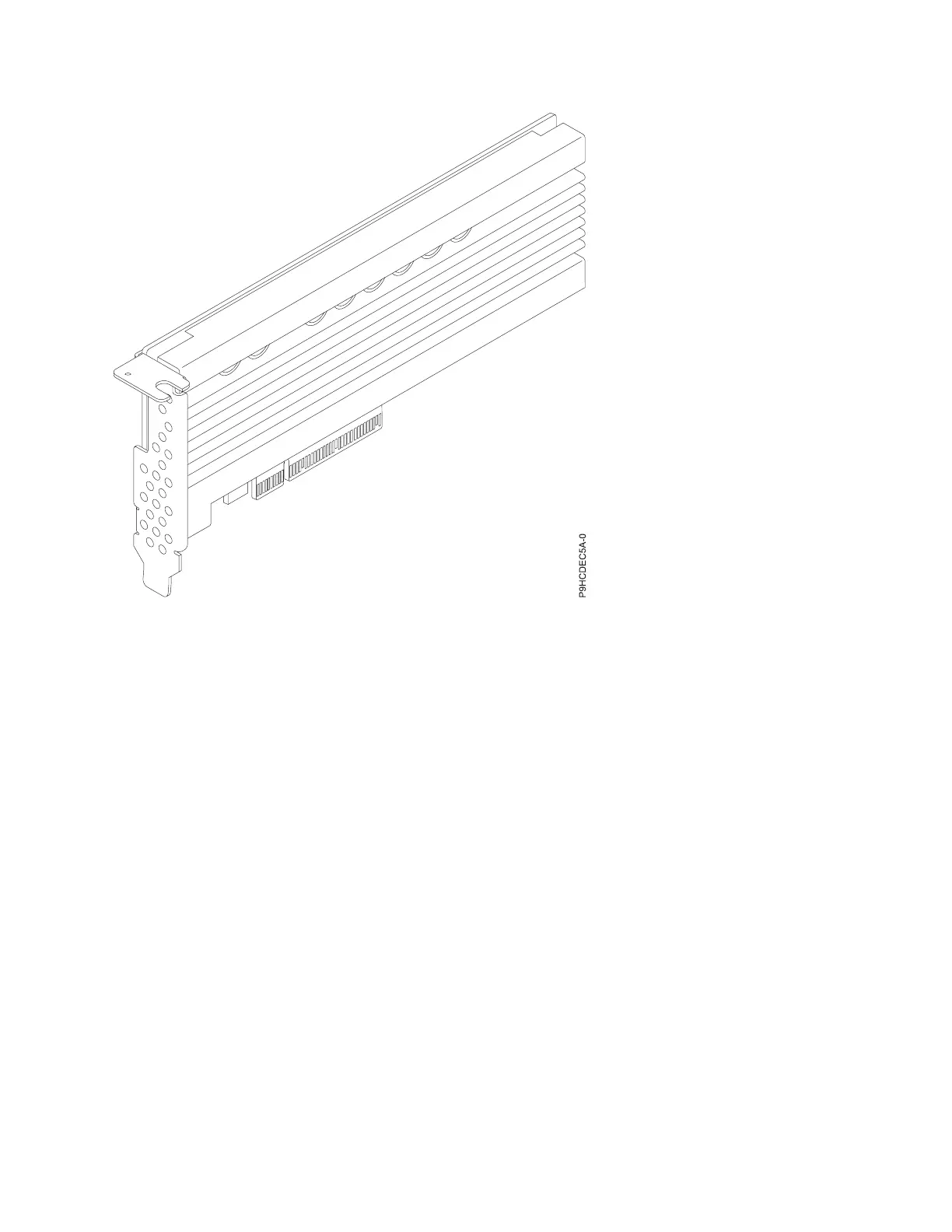

Figure 29. PCIe3 x8 NVMe 3.2 TB SSD NVMe Flash Adapter
Managing PCIe adapters 71
