Mounting the Device
• #2 Phillips torque screwdriver
• 1/4-inch slotted-blade torque screwdriver
1 Front brackets (2)
2 Extension brackets, medium (2)
3 Rear brackets, short (2)
4 Rear brackets, long (2)
5 Extension brackets, long (2)
6 Screw, 8-32 x 5/16-in., panhead Phillips
(8)
7 Screw, 8-32 x 5/16-in., flathead Phillips
(16)
8 Screw, 6-32 x 1/4-in., panhead Phillips
(8)
9 Screw, 10-32 x 5/8-in., panhead Phillips
(8)
10 Retainer nut, 10-32 (8)

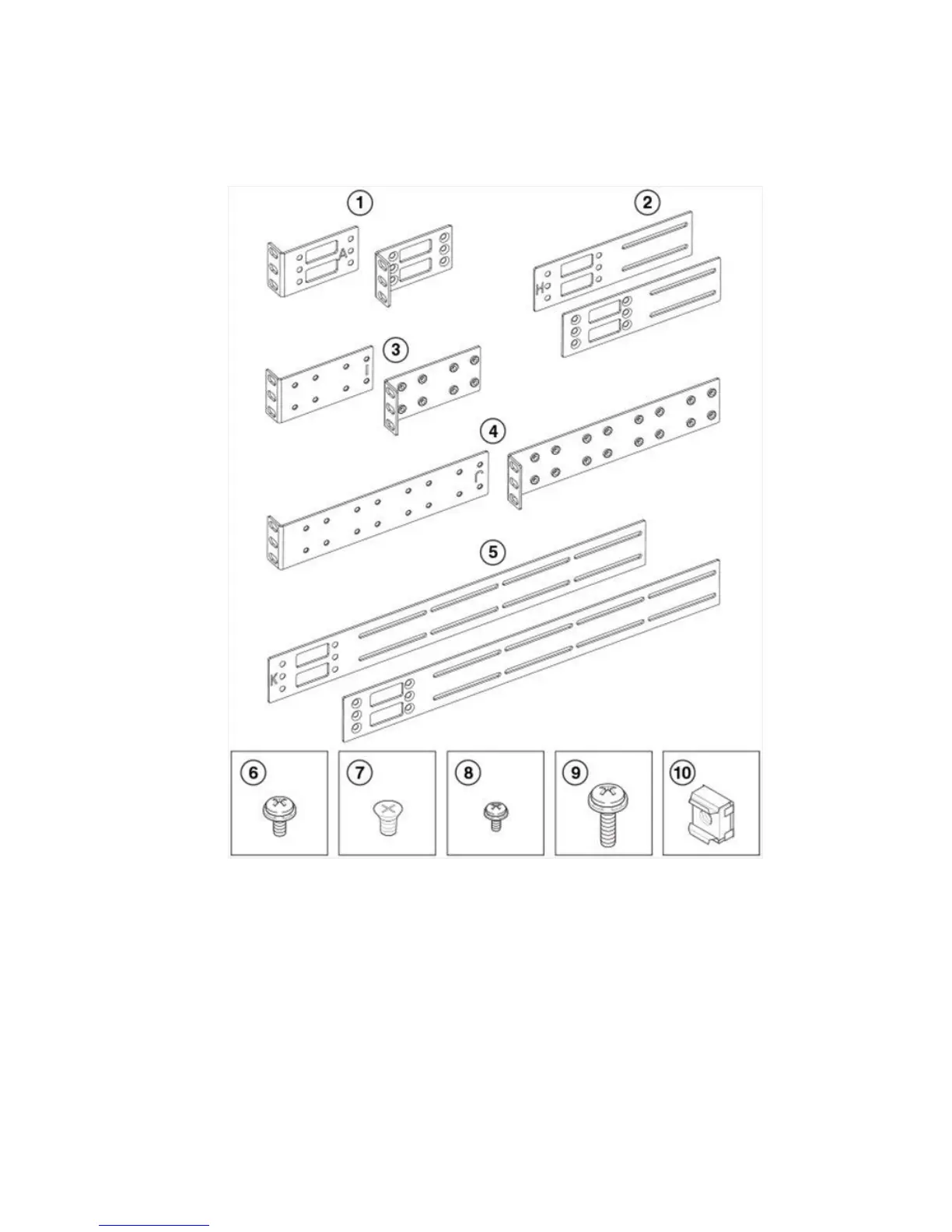

FIGURE 3 Items in the Universal Four-Post Rack Kit
Ensure that the items listed and illustrated in Figure 3 are included in the kit. Note that not all parts
may be used with certain installations depending on the device type.
28 Hardware Installation Guide
