Flush-front mounting
1 Front brackets (2)
2 Rear brackets, 3-5 inch post (2)
3 Rear brackets, 5-6 inch post (2)
4 Screw, 8-32 x 5/16-in., panhead Phillips
(8)
5 Screw, 8-32 x 5/16-in., flathead Phillips
(16)
6 Screw, 6-32 x 1/4-in., panhead Phillips
(8)
7 Screw, 10-32 x 5/8-in., panhead Phillips
(8)
8 Retainer nut, 10-32 (8)

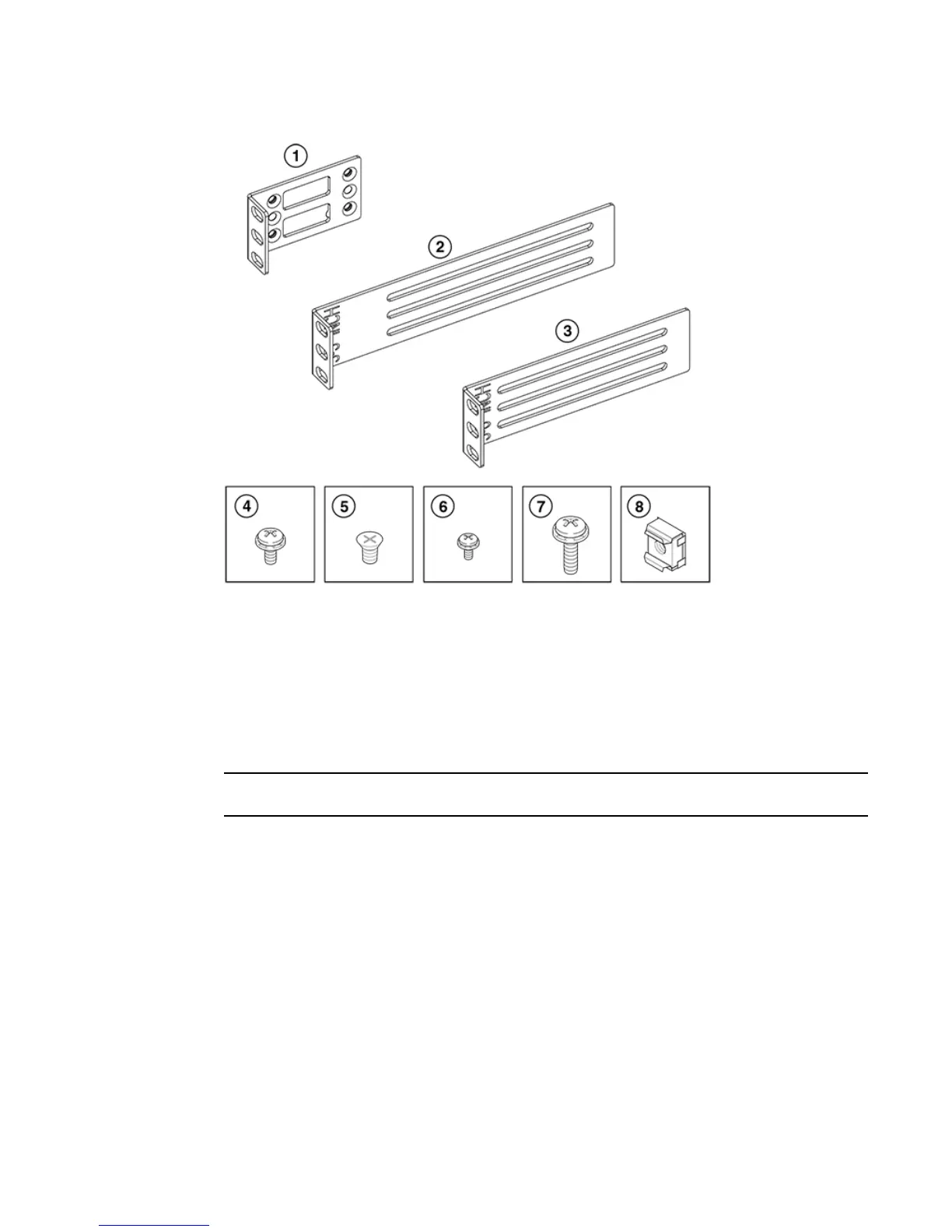

FIGURE 15 Items in the Universal Two-Post Rack Kit
NOTE
Use the screws specified for use with the device. Longer screws can damage the device.
Ensure that the items listed and illustrated in Figure 15 are included in the kit. Note that not all parts
may be used with certain installations depending on the device type.
Flush-front mounting
Observe the following notes when using this procedure:
• The device must be turned off and disconnected from the fabric during this procedure.
• The illustrations in this document show a 1U device, but the instructions are the same for a 2U
device.
• The illustrations for this procedure show a two-post rack with narrow posts (3- to 5-inch) as an
example.
Complete the following tasks to install the device in a rack:
1. Attaching the front brackets to the device on page 42
2. Attaching the front brackets to the rack on page 42
