Mid-mounting

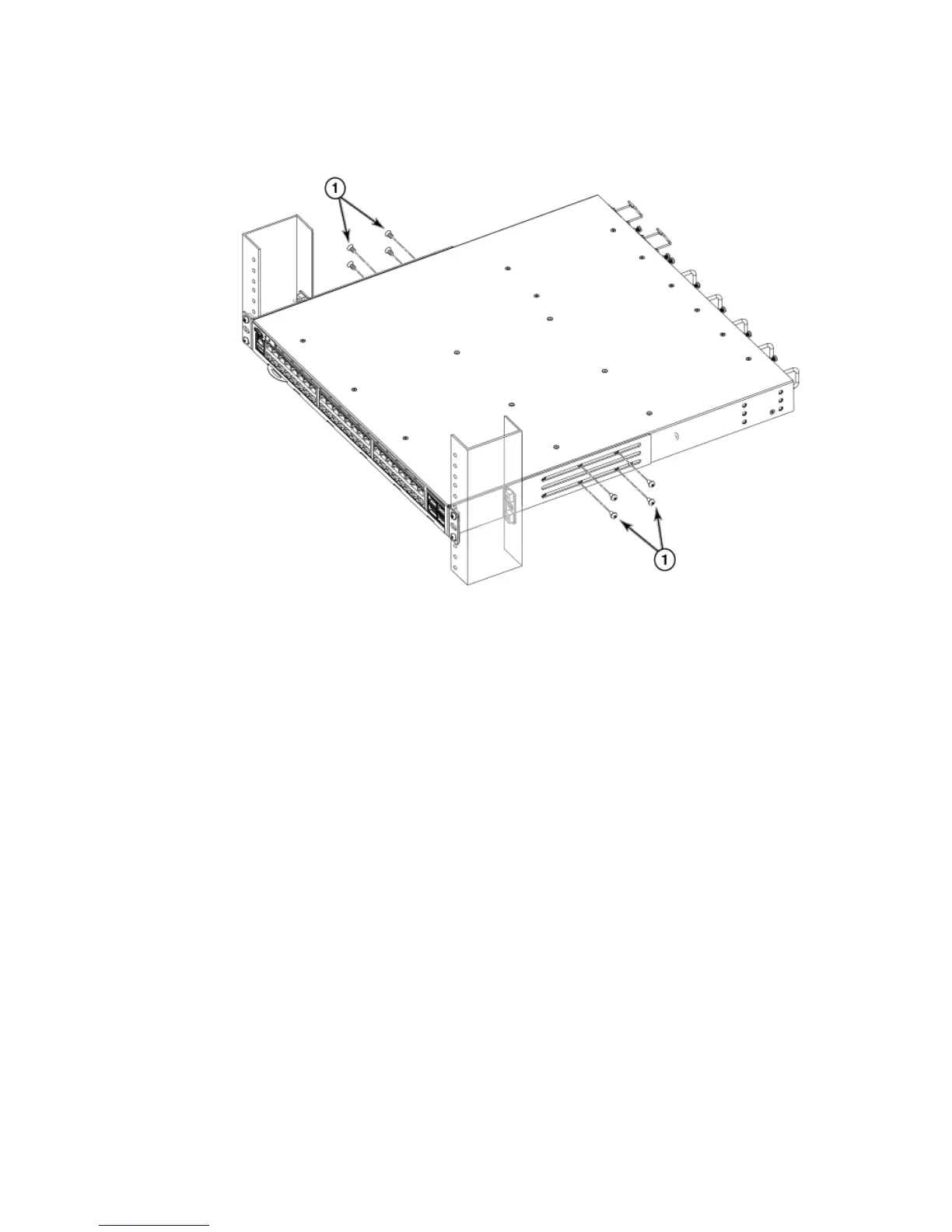

FIGURE 19 Attaching the rear brackets to the device
1. Screws, 8-32 x 5/16-in., panhead Phillips
Mid-mounting
Observe the following notes when using this procedure:
• The device must be turned off and disconnected from the fabric during this procedure.
• The illustrations in this document show a 1U device, but the instructions are the same for a 2U
device.
Complete the following tasks to install the device in a rack:
1. Attaching the front brackets to the device on page 45
2. Attaching the front brackets to the rack on page 46
3. Attaching the rear brackets to the rack on page 47
4. Attaching the rear brackets to the device on page 48
Attaching
the
front brackets
to the device
Complete the following steps to attach the front brackets to the device.
1. Position the right front bracket with the flat side against the right side of the device, as shown in
Figure 20 .
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then
into the holes on the side of the device. Use the upper and lower screw holes, leaving the center
holes empty.
3. Repeat step 1 and step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
Hardware Installation Guide 45
