Attaching the rear brackets to the rack posts

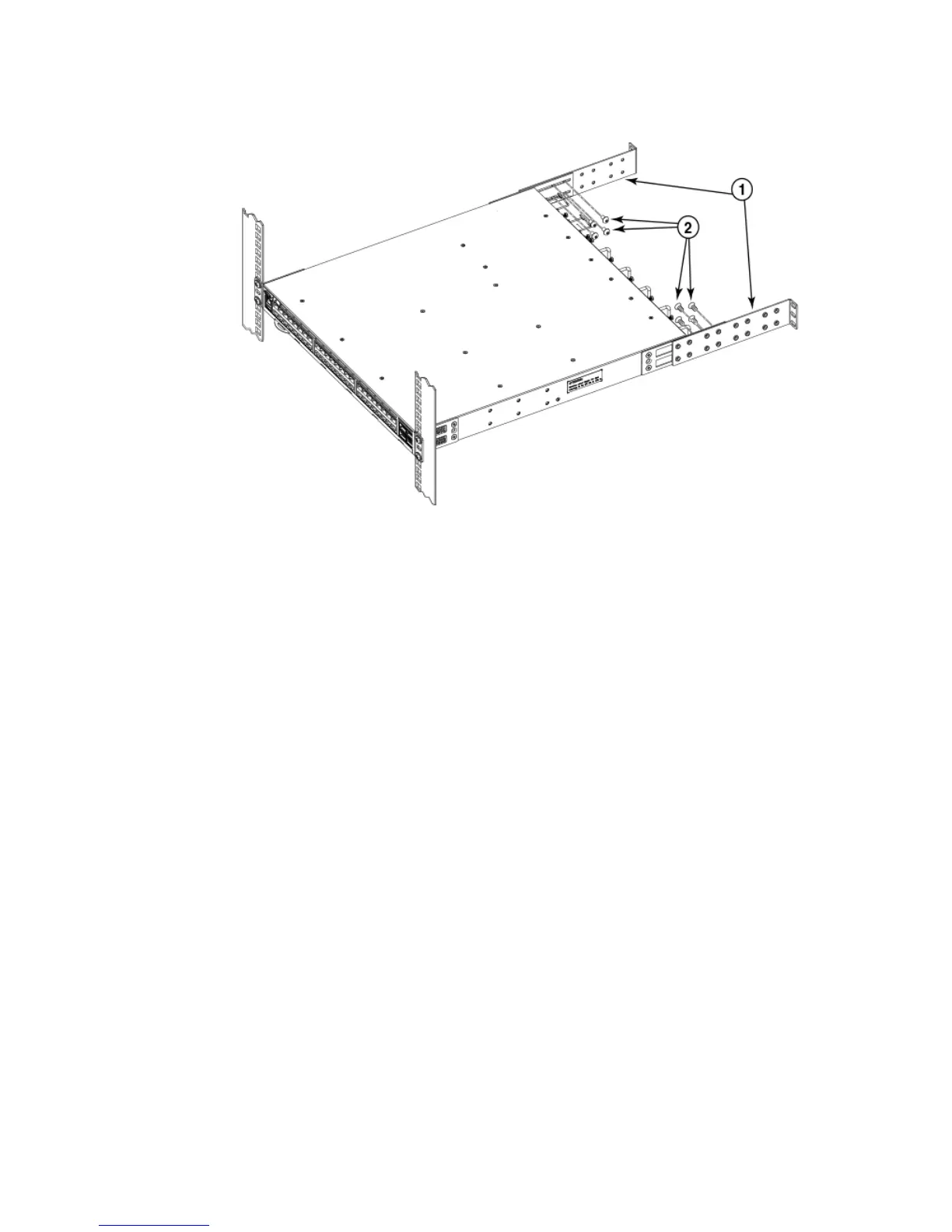

1 Rear brackets
2 Screws, 6-32 x 1/4-in., panhead Phillips
FIGURE 7 Attaching the rear brackets to the extensions
Attaching
the
rear brackets
to the
rack
posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts, as shown in Figure 8 . Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
Hardware Installation Guide 33
