Repair Information 4-35
Bay 4, 5 (3.5-In. Diskette/Hard Disk Drives)
•
Disconnect the cables (note location of cables).
•
Press the lever and rotate outward.
•
Pull carefully and slowly as soon as the warning arrow appears.
•
The drive frame becomes free after the line behind the arrow appears.
Remove the frame from the chassis.

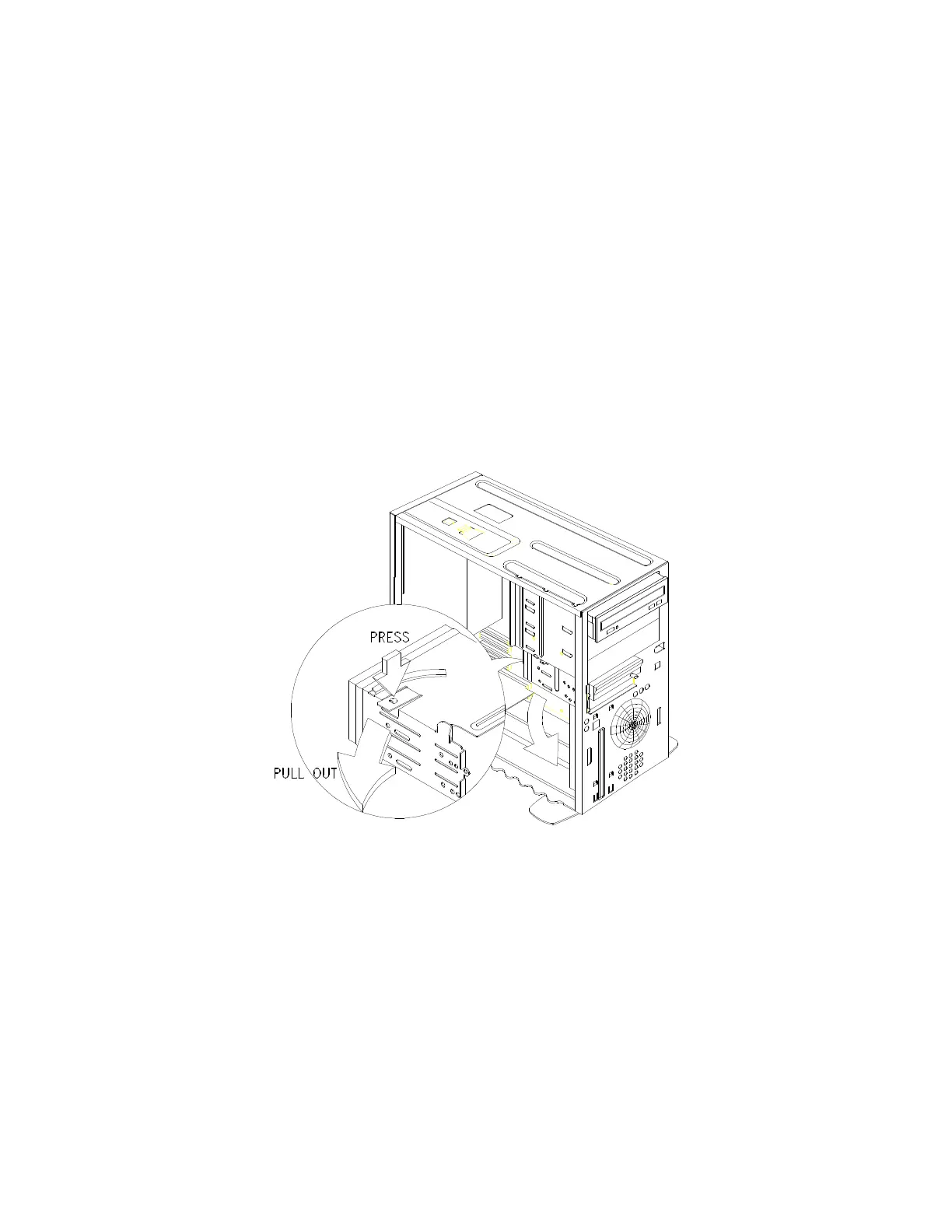

Figure 4- 32 Bay 4 (3.5-In)
To Next Page
