4-16
Processor(K6)
NOTE
: Determine the type of processor you are installing and make sure the
jumpers are set correctly. Run the Setup Utility after correctly
installing a processor.
ATTENTION:
Processors are sensitive to static discharge.
•
Remove adapter cards if applicable.
•
Detach the heat sink cable from the fan connector FN1.
•
Remove the fan sink by pressing the release tab (rectangular end) and
lifting it up from the Processor.
•
Pull up the ZIF socket release lever.
•
Lift the processor out of the socket.

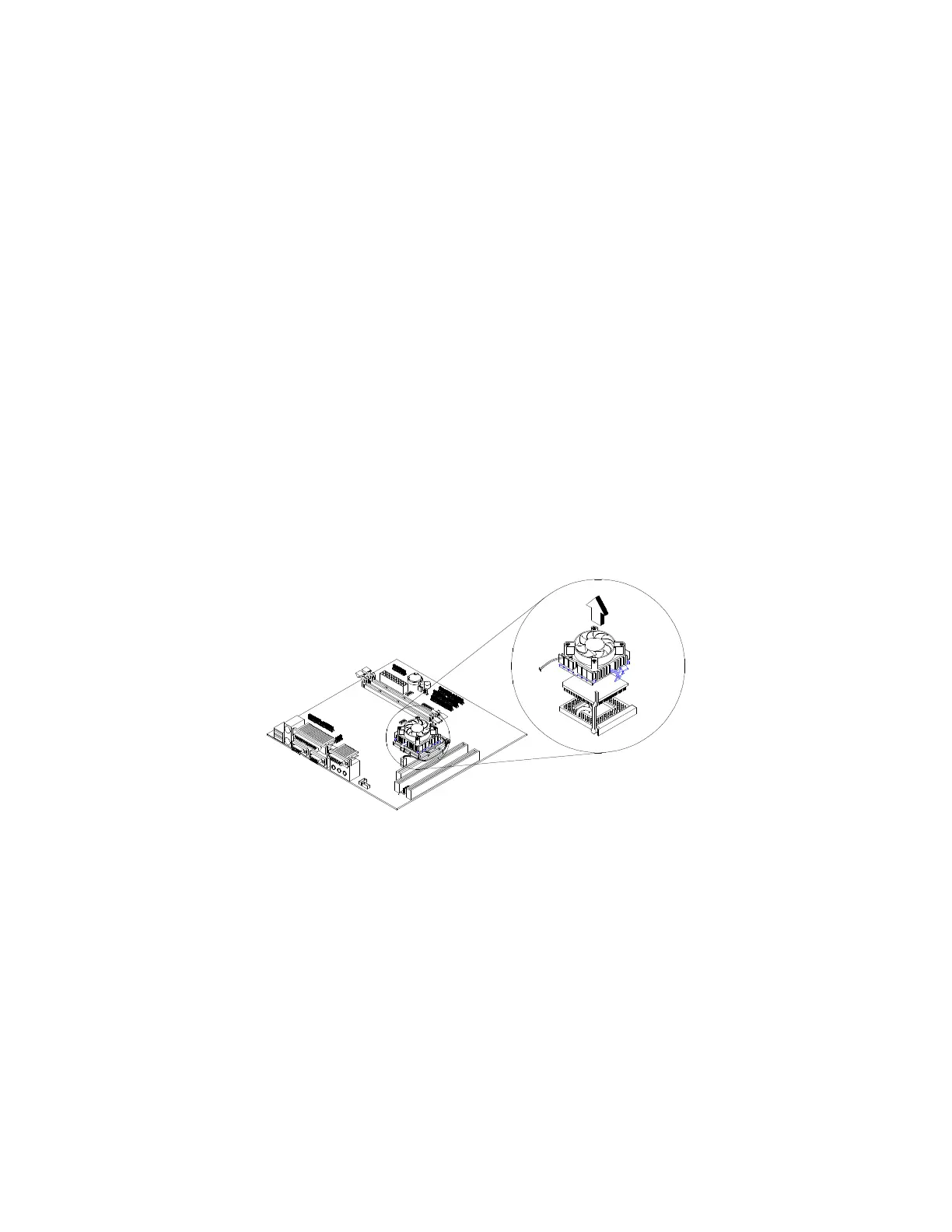

Figure 4- 13 Removing the processor
