Repair Information 4-17
NOTE: Installing the processor
•
Place the ZIF socket release lever to the release (up) position.
•
Insert the new processor, matching the notched corner of the processor
with the pin 1 indicator on the socket.

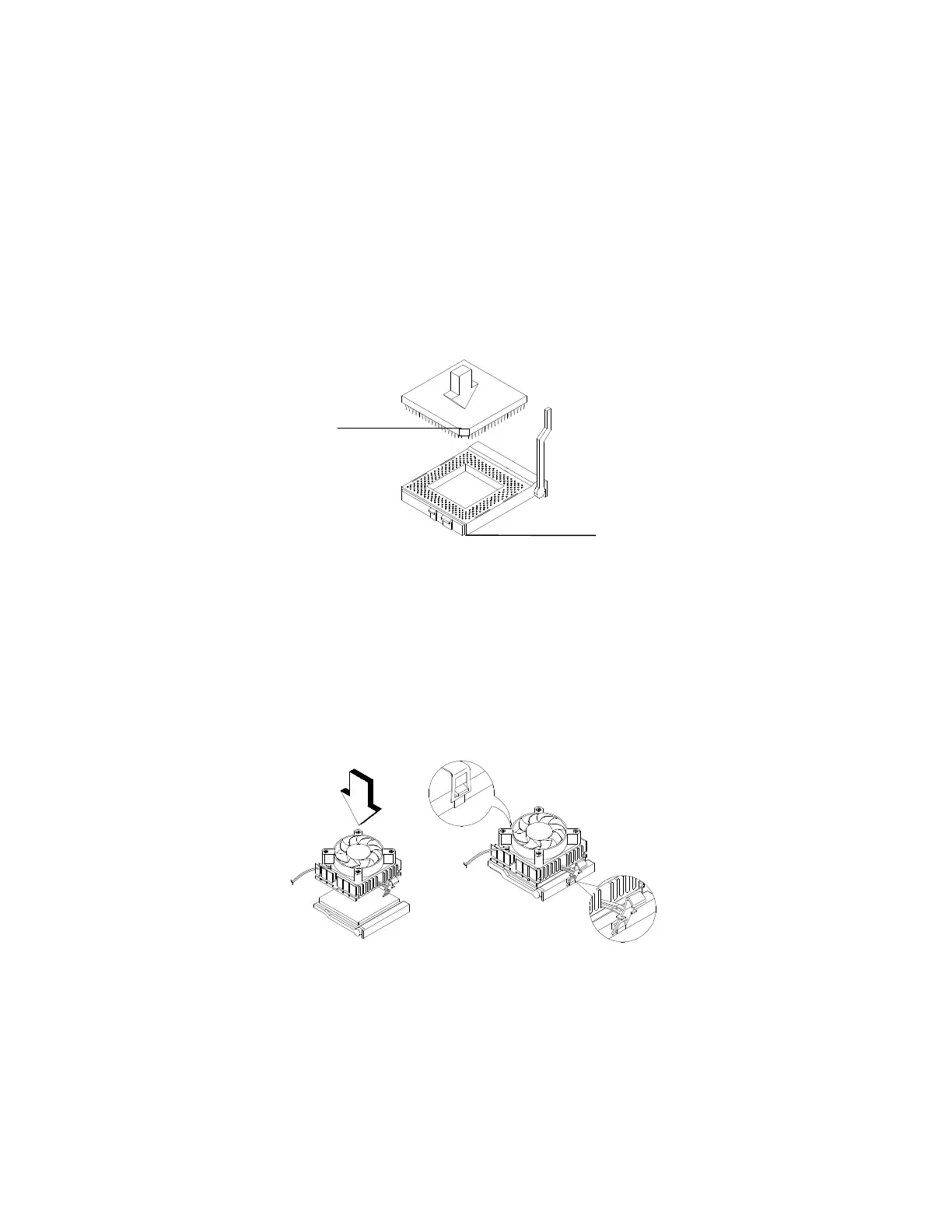

Figure 4- 14 Inserting the processor
•
Push down the lever to lock the processor to the socket.
•
Place the processor heat sink fan over the processor.
•
Insert one side of fan brace onto the ZIF socket
•
Secure by latching the other side to the ZIF socket.
•
Reconnect the processor fan sink cable to the connector FN1 on the
system board.
Figure 4- 15 Installing the processor
Notched
corner
Pin1
indicator
