IBM Aptiva 2158

To Next Page

To Previous Page

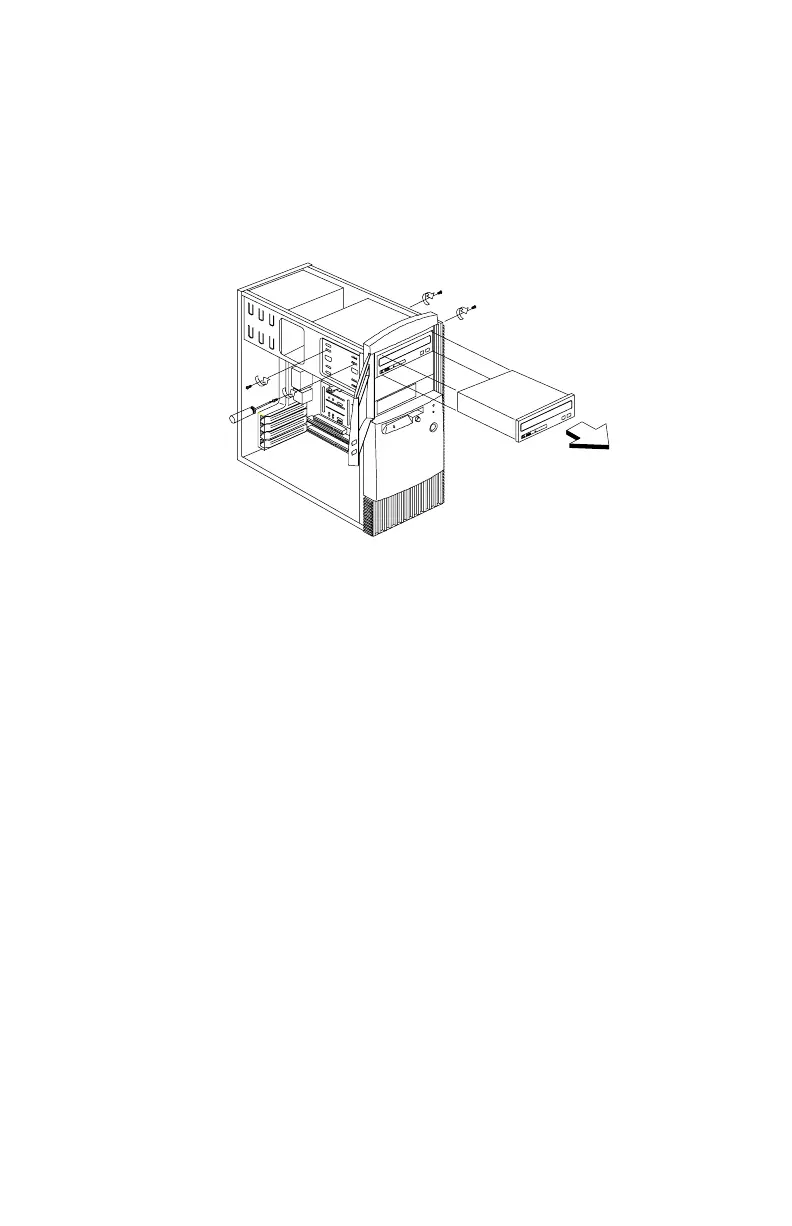

Bay 1- 5.25-In. Bay (Internal or External Access)

•

Disconnect any cable on the drive (note location and orientation of cables).

•

Remove the screws.

•

Pull out the drive.
