IBM Aptiva 2158

To Next Page

To Previous Page

Parts Catalog 167

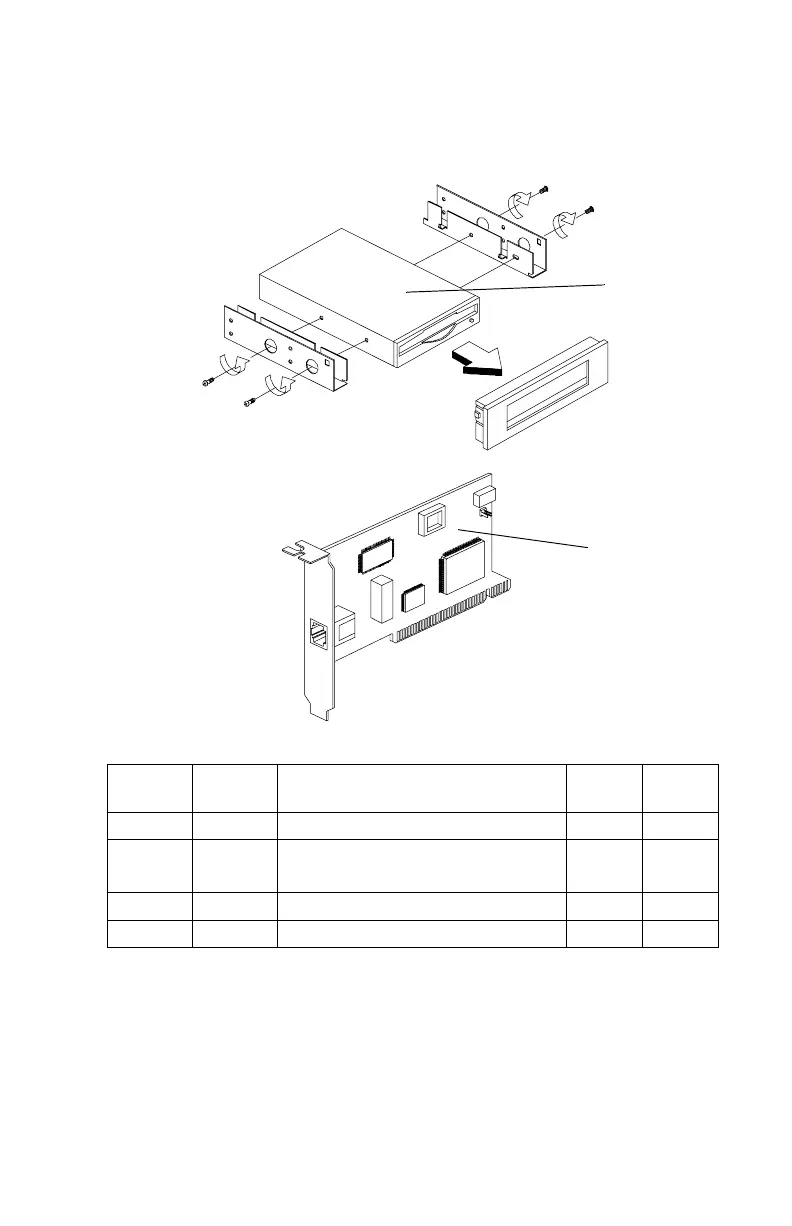

Assembly 6: Machine Type 2158/2163 Zip Drive and Network

Adapter

Asm-

Index

FRU

Number

Description

Model

2158

Model

2163

6-1 28L1605 Iomega Zip Drive, Z100ATAPI X X

6-2 08L2550 IBM Ethernet Adapter

Lake Clark 1.6

6-2 34L0409 3COM 10/100 X X

6-NS 36L9069 Graphics Card X
