Parts/Test Point Locations 149

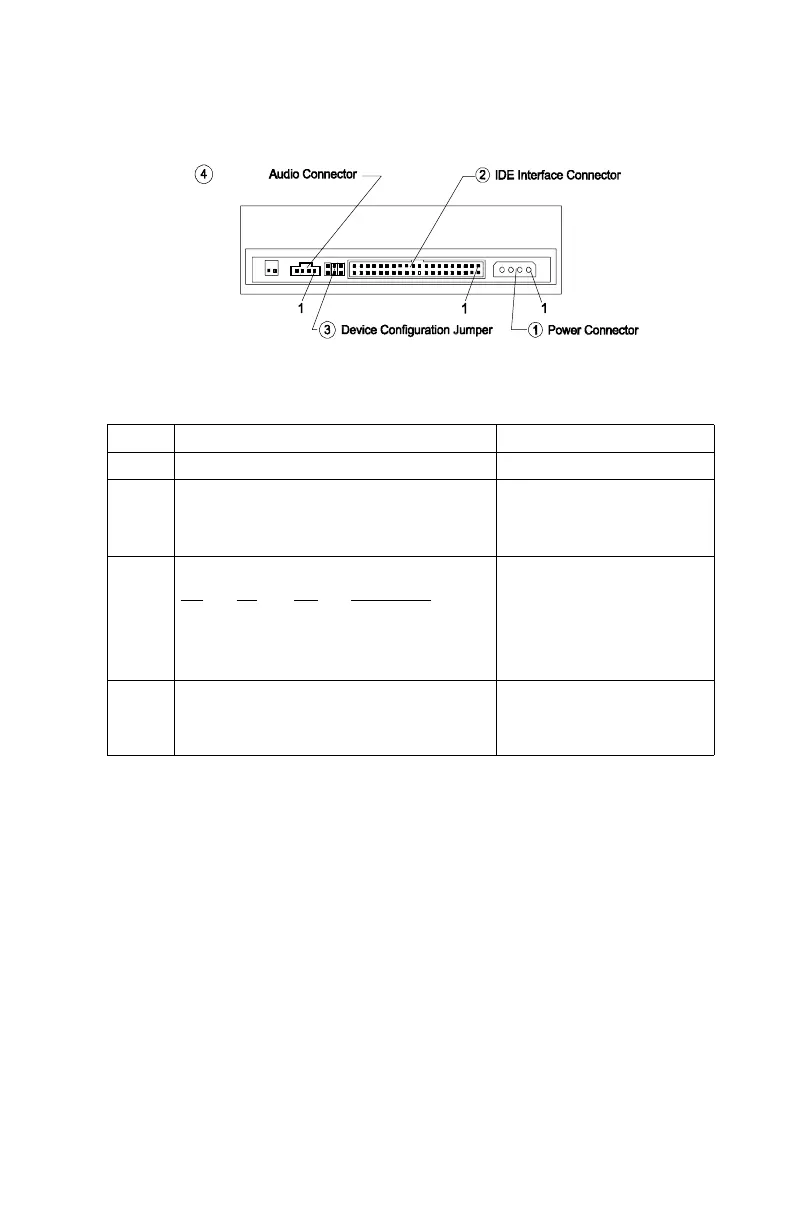

DVD-ROM Drive Rear Panel Connectors and Jumpers

Item Function Connect to...

1 Power connector Power supply

2 IDE Interface connector System board

2158: CN10

2163/2164: CN10

3 Configuration jumper.

SL MA Description

-- -- On Master(default).

-- On -- Slave.

On -- -- Cable select

4 Analog Audio connector System board

2158: CN15

2163/2164: CN8

Analog
