IBM Aptiva 2158

To Next Page

To Previous Page

Repair Information 125

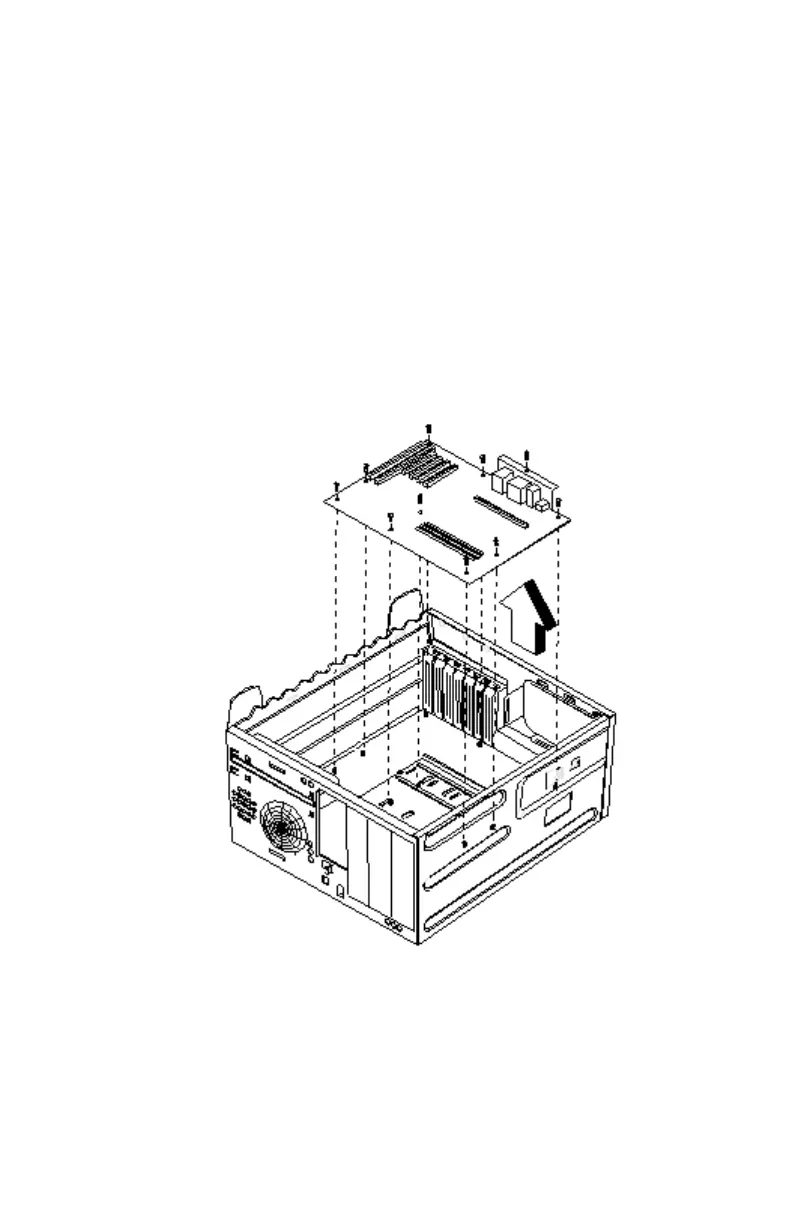

System Board

•

Remove all adapter cards.

•

Disconnect all cables connected to the system board.

•

Remove the screws securing the system board to the chassis.

•

Lift the system board to remove from chasis.

•

Remove memory (DIMM) if applicable.

•

Remove processor.
