Repair Information 89
Pentium II Processor Installation
Follow these steps to install the Pentium II processor module with heat sink
and fan to the socket on the system board.
•

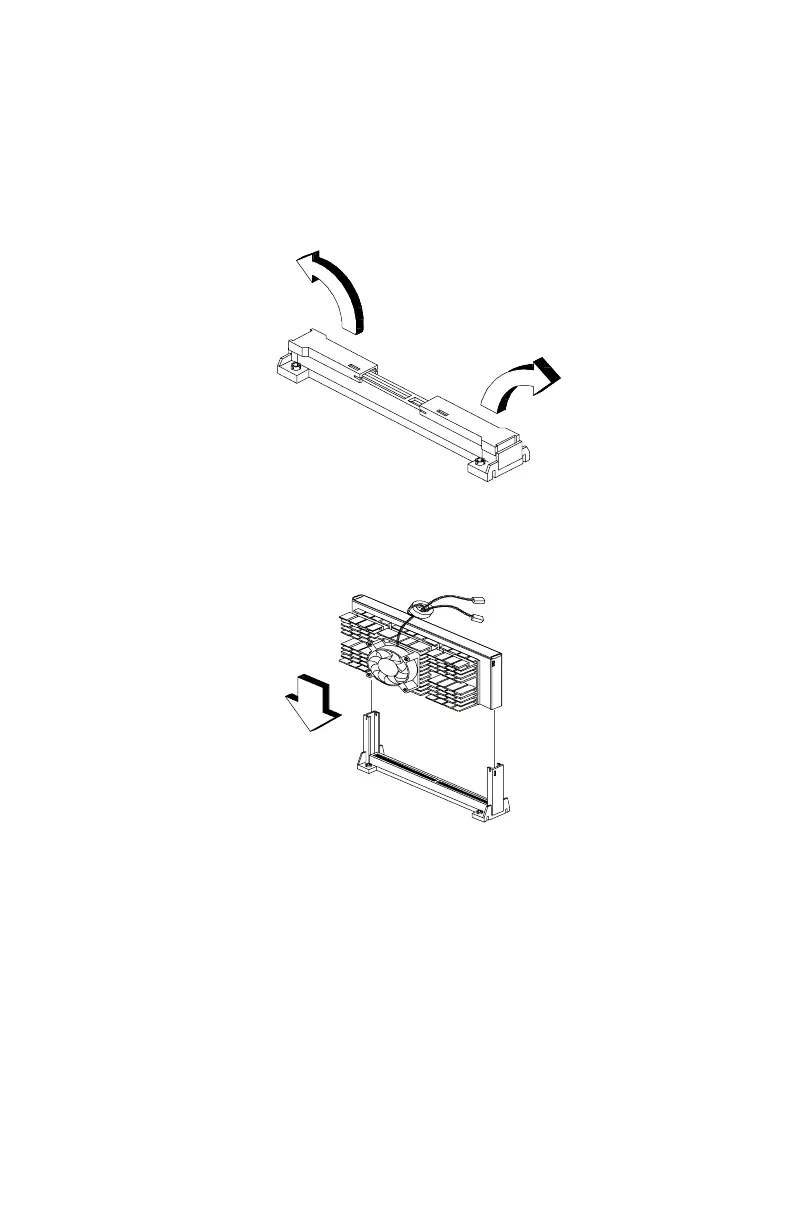

Locate the retention mechanism around the processor socket. Fold out the
retainers.
•
With the processor module electrical contacts pointing downward, align the
processor to the posts of the retention mechanism, then lower it down.
CAUTION:
The electrical contacts of the Pentium II module are slotted in such
a way that the module only fits in one direction. Make sure that the
module groove matches the one on the processor socket.
