Repair Information 91
•

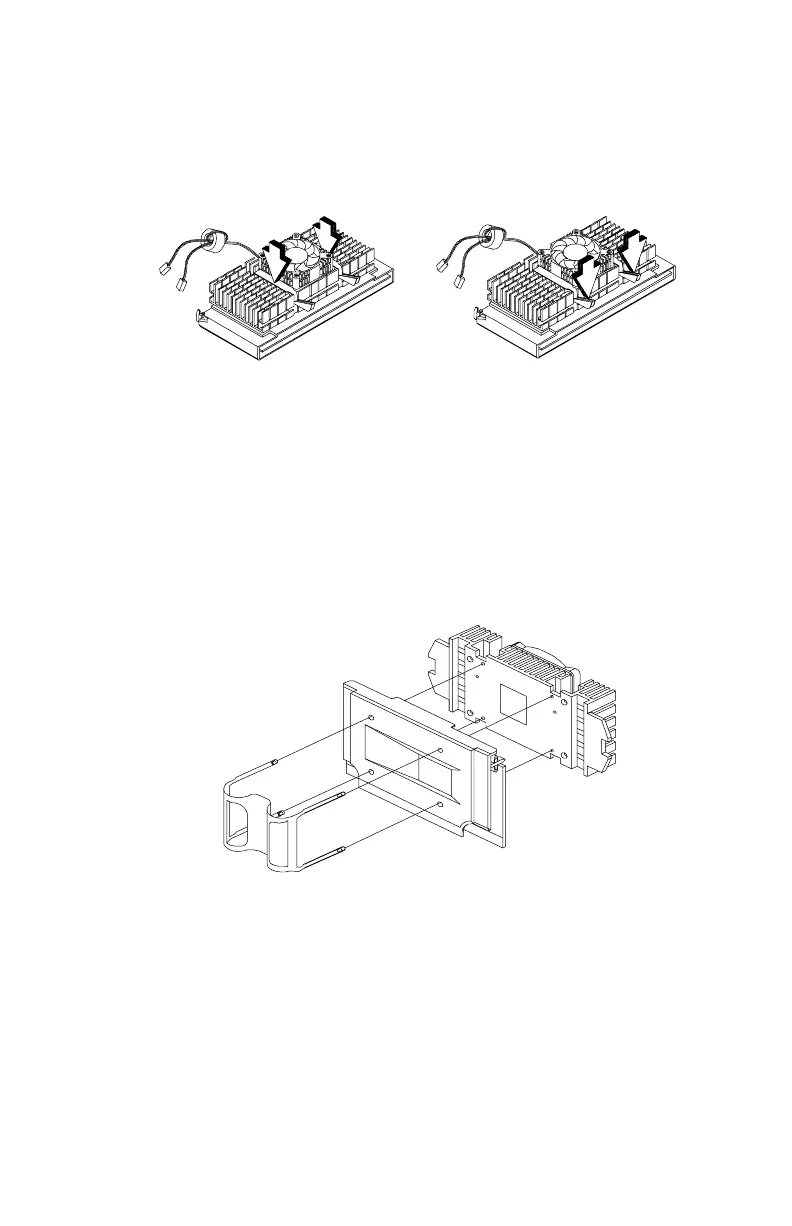

Using your fingers, push down the metal bracket until it clicks into the CPU
cartridge and then push the metal bracket levers down, to lock the metal
bracket into place.
SECC2 Package Installation
Follow these steps when installing the heat sink and fan to the Pentium II
processor module:
•
Remove the thermal tape protector at the back of the fan sink.
•
Attach the fan sink to the PC board side of the Pentium II processor.
•
Press the fastener towards the fan sink side to lock the fan sink.
.
1
2
To Next Page
