IBM Aptiva 2158

To Next Page

To Previous Page

Repair Information 115

NOTE:

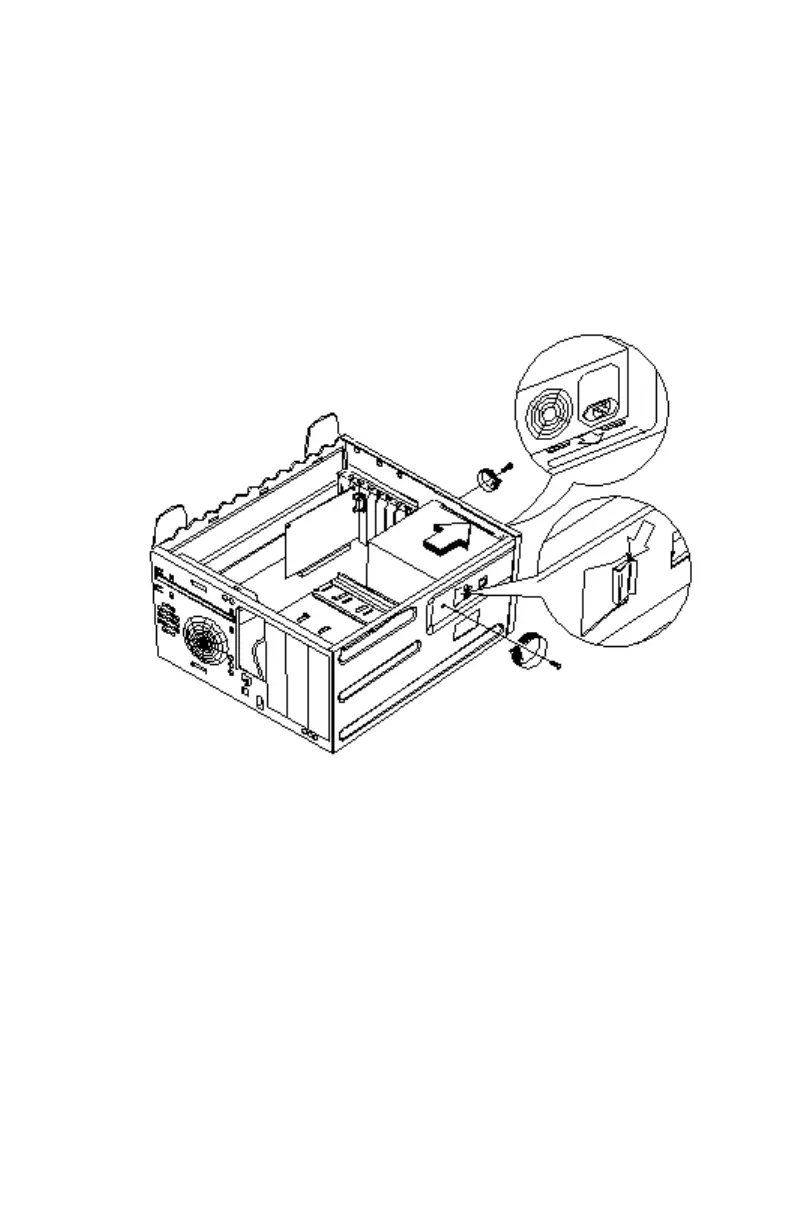

Replacing the Power Supply

•

Insert the power supply frame into its corresponding cut-away openings on

the chassis.

•

Align the top rails and slide in to lock.

•

Secure the power supply with it's two original screws
