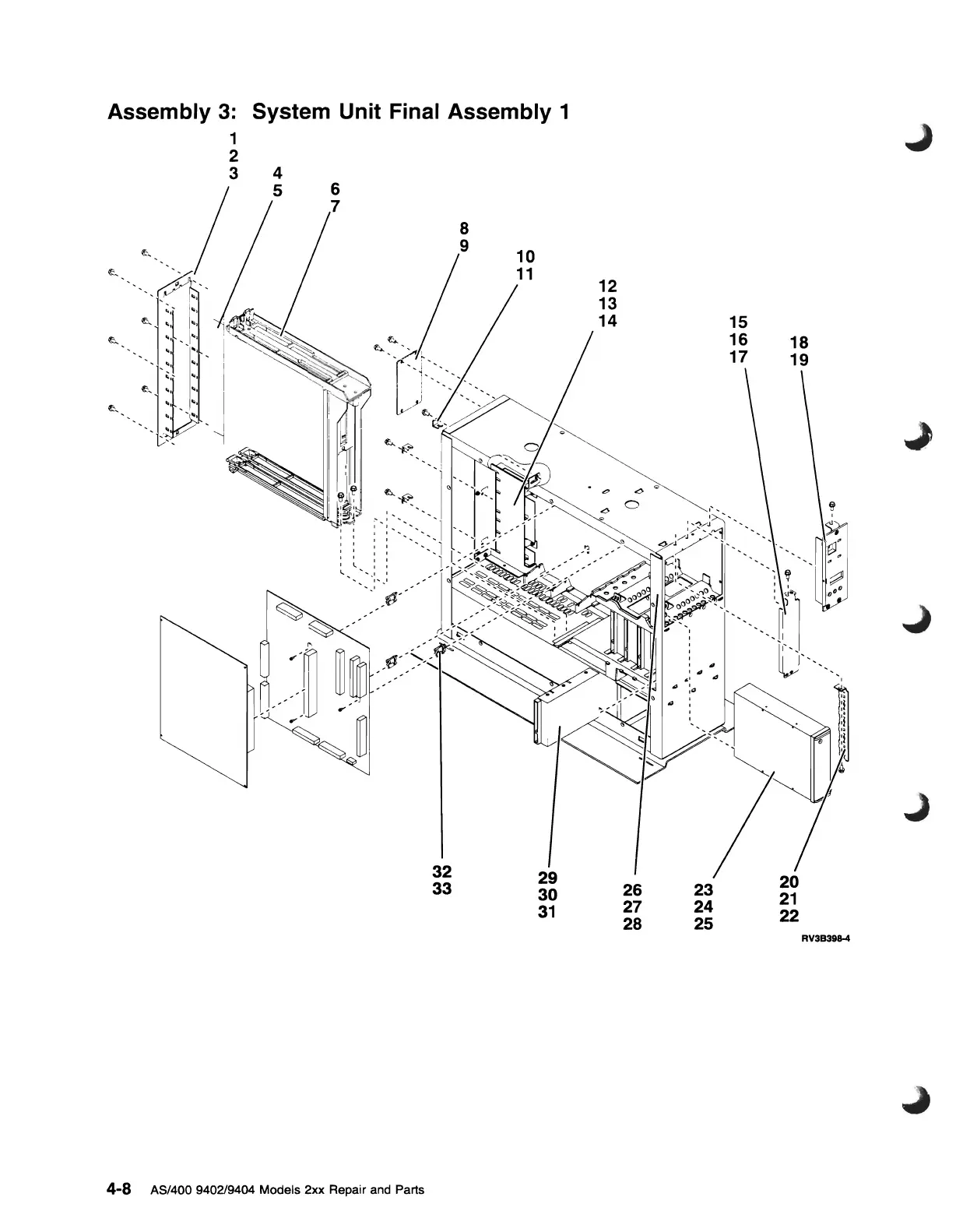

Assembly
3:
System
Unit
Final
Assembly
1
1
/
2
3
4
5
6
7
4-8
AS/400
940219404
Models
2xx
Repair
and
Parts
32
33
8
9
10
11
29
30
31
12
13
14
26
27
28
23
24
25
15
16
17
18
19
RV3B398-4
63
65
Table of Contents
Table of Contents
5
Notices
7
Safety and Environmental Notices
7
Danger Notices
7
Caution Notices
8
Warning Notices
8
Product Recycling
9
Product Disposal
9
Trademarks and Service Marks
10
L. Chapter 1. Removal and Installation Procedures
11
Chapter 1. Removal and Installation Procedures
11
Access Plate
12
Cards
14
Card Enclosure
16
Control Panel
18
Covers
20
Disk Unit
22
Main Storage Card
24
Multiple Function Input/Output Processor
26
Power Supply
28
System Processor
30
Tape Unit
32
Workstation Plate
34
. Recovery Procedures
37
Determining Storage Protection Status
38
Disk Service Support
38
Start Disk Service here
38
Chapter 2. Recovery Procedures
39
Exchanging a Disk Unit with Device Parity Protection
39
Exchanging a Disk Unit with Mirrored Protection
39
Resuming Mirrored Protection
40
Disk Unit Data Save and Initialize - Pump Data to Tape
41
Copy the Contents of Vllc Log
48
Restoring Data to the Disk Unit
48
SST/DST Procedures
48
Chapter 3. Service Referenced Procedures
51
Chapter 4. Parts Listing
63
Appendix A. Working with Electrostatic Discharge-Sensitive Parts
81
Appendix B. Service Log
83
Glossary
85
Bibliography
87
Part Number Index
89
