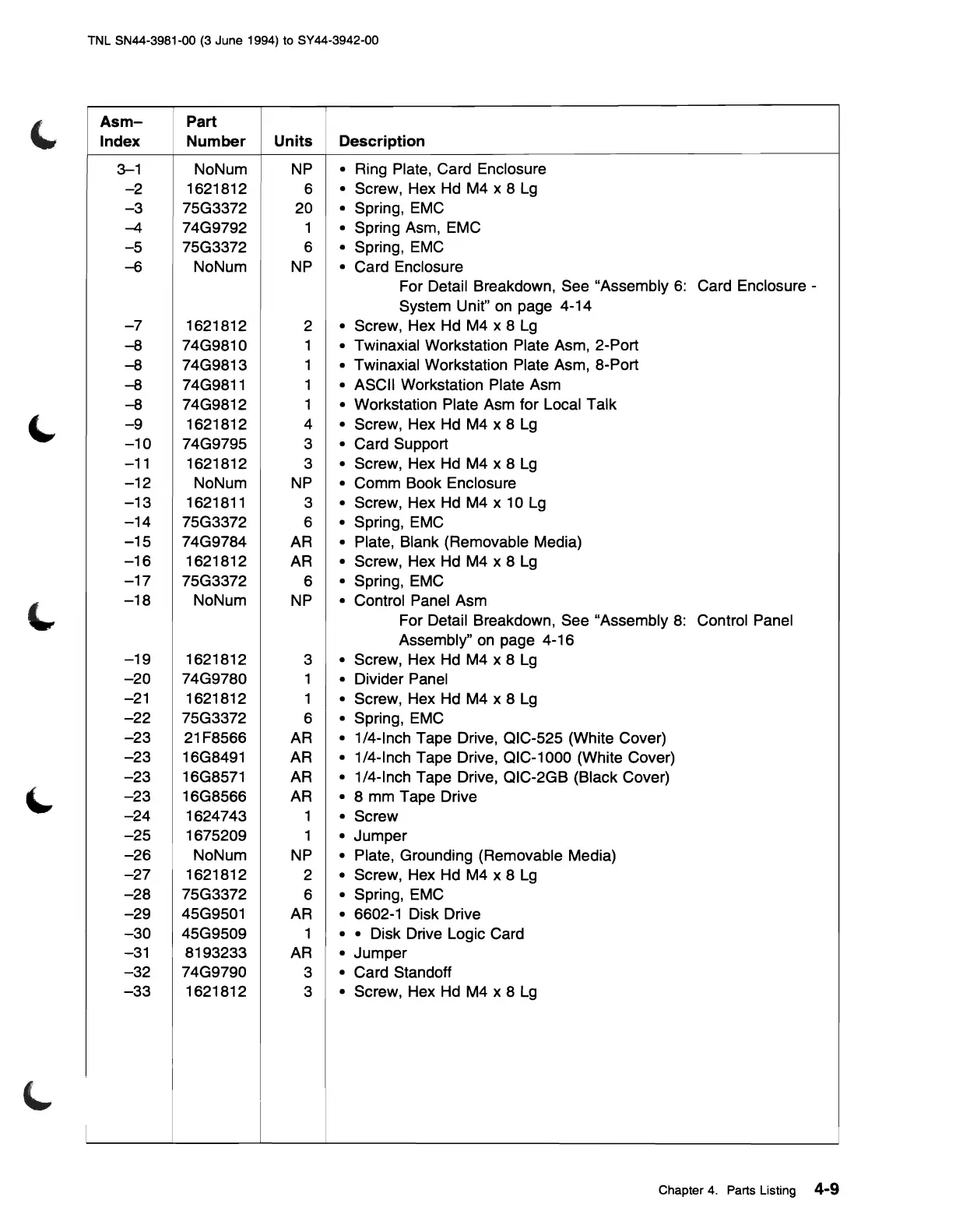

IBM AS/400 Repair And Parts

TNL SN44-3981-00 (3 June 1994) to SY44-3942-00
Asm-
I
Part .
Index Number Units
Description
3-1
NoNum
NP • Ring Plate, Card Enclosure
-2 1621812
6
• Screw, Hex
Hd M4 x 8 Lg
-3 75G3372
20
• Spring,
EMC
-4
74G9792 1
• Spring Asm, EMC
-5
75G3372 6
• Spring,
EMC
-6
NoNum
NP
• Card Enclosure
For Detail Breakdown, See "Assembly
6: Card Enclosure -
System Unit"
on page 4-14
-7
1621812 2
• Screw, Hex
Hd M4 x 8 Lg
-8
74G9810 1
• Twinaxial Workstation Plate Asm, 2-Port
-8 74G9813 1 • Twinaxial Workstation Plate Asm, 8-Port
-8 74G9811
1
• ASCII Workstation Plate Asm
-8 74G9812
1 • Workstation Plate Asm for Local Talk
-9
1621812 4
• Screw, Hex
Hd M4 x 8 Lg
-10 74G9795
3
• Card Support
-11
1621812
3
• Screw, Hex
Hd M4 x 8 Lg
-12
NoNum NP
• Comm Book Enclosure
-13
1621811
3
• Screw, Hex
Hd M4 x 10 Lg
-14
75G3372
6
• Spring,
EMC
-15
74G9784 AR
• Plate, Blank (Removable Media)
-16
1621812 AR
• Screw, Hex
Hd M4 x 8 Lg
-17
75G3372
6
• Spring, EMC
-18
NoNum
NP
• Control Panel Asm
For Detail Breakdown, See "Assembly
8: Control Panel
Assembly" on page 4-16
-19
1621812
3
• Screw, Hex
Hd M4 x 8 Lg
-20
74G9780
1
• Divider Panel
-21
1621812
1
• Screw, Hex
Hd M4 x 8 Lg
-22
75G3372
6
• Spring,
EMC
-23
21F8566
AR • 1/4-lnch Tape Drive, OIC-525 (White Cover)
-23 16G8491
AR
• 1/4-lnch Tape Drive, OIC-1000 (White Cover)
-23 16G8571
AR
• 1/4-lnch Tape Drive, OIC-2GB (Black Cover)
-23
16G8566
AR
• 8 mm Tape Drive
-24 1624743
1
• Screw
-25
1675209 1
• Jumper
-26
NoNum
NP
• Plate, Grounding (Removable Media)
-27
1621812
2
• Screw, Hex Hd M4 x 8
Lg
-28
75G3372
6
• Spring, EMC
-29
45G9501 AR
• 6602-1 Disk Drive
-30
45G9509 1
• • Disk Drive Logic Card
-31
8193233 AR
• Jumper
-32 74G9790
3
• Card Standoff
-33
1621812
3
• Screw, Hex
Hd M4 x 8 Lg
I I
Chapter 4. Parts Listing 4-9
